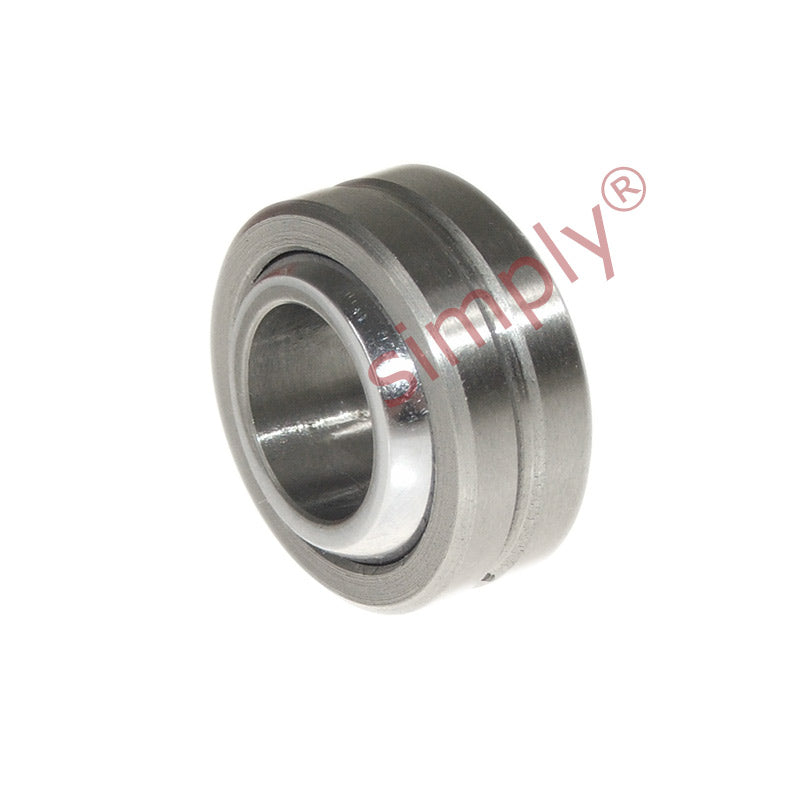

• COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore
1 1

SKU: COM06T-EU

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore
$13.00 ex VAT
$13.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $6.14
19+ $5.79
29+ $5.72
39+ $5.65
49+ $5.59
74+ $5.52
99+ $5.17
199+ $5.10
249+ $5.03
499+ $4.96
999+ $4.83
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
9.53mm = 0.375 (3/8) inch
Outside Diameter:
21.03mm = 0.828 (53/64) inch
Width:
7.93mm = 0.312 (5/16) inch

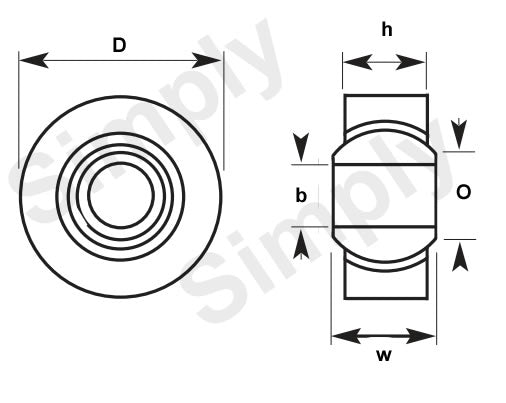

Technical
b 3/8 inch
w 13/32 inch
h 5/16 inch
D 53/64 inch
O 0.516 inch
Static load 37361 N
