SKU: CM-UKT306SD1/HS2306-NTN

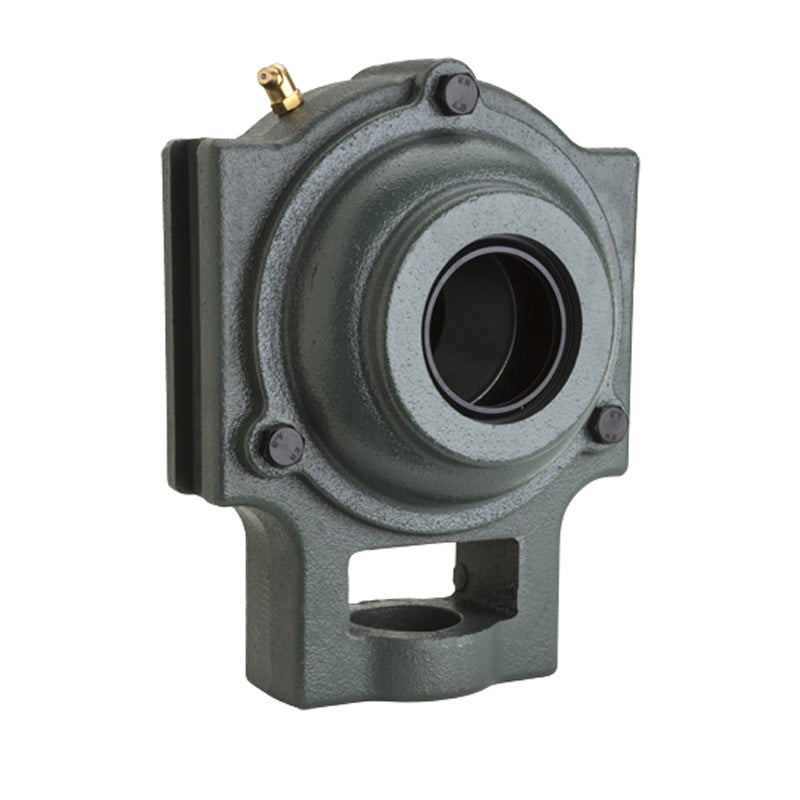

NTN CM-UKT306SD1/HS2306 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 7/8 inch Shaft - Allow 2-3 Days
NTN CM-UKT306SD1/HS2306 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 7/8 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description

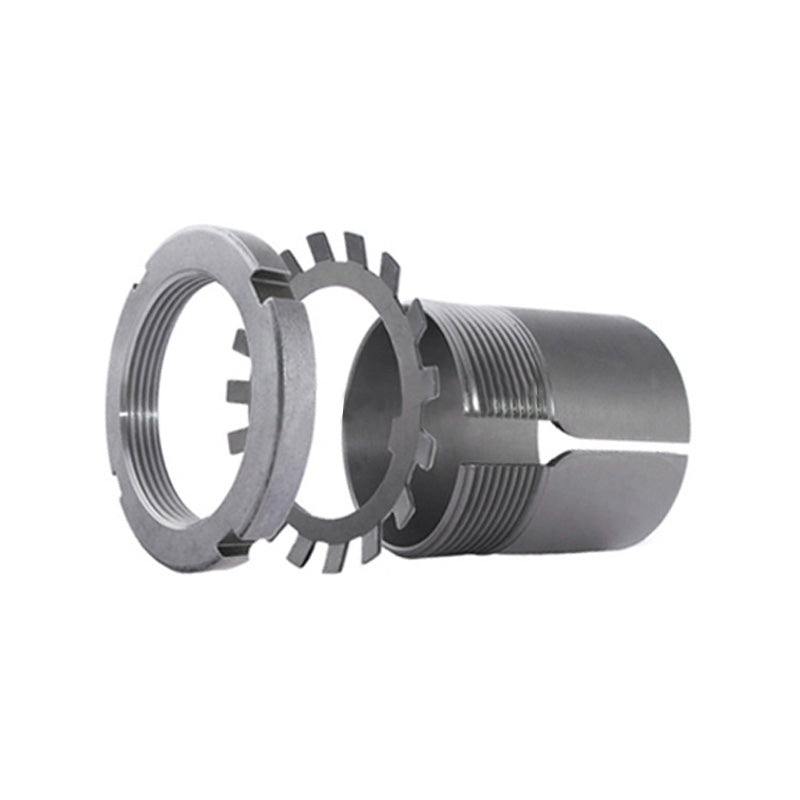

UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 7/8 inch |
|---|---|
| N<sub>1</sub> | 23/32 inch |
| L<sub>2</sub> | 5/8 inch |
| H<sub>2</sub> | 2-3/4 inch |
| N<sub>2</sub> | 1-5/8 inch |
| N | 1-3/32 inch |
| L<sub>3</sub> | 2-29/32 inch |
| A<sub>1</sub> | 0.63 inch |
| H<sub>1</sub> | 3-35/64 inch |
| H | 3-15/16 inch |
| A<sub>2</sub> | 1-3/32 inch |
| A | 1-5/8 inch |
| r | 2-1/16 inch |
| L<sub>1</sub> | 3-11/32 inch |
| B<sub>1</sub> | 1.496 inch |
| t | 19/32 inch |
| L<sub>4</sub> | 5-15/32 inch |
| A<sub>5</sub> | 3-11/32 inch |
| Mass | 5.5 lbs |
