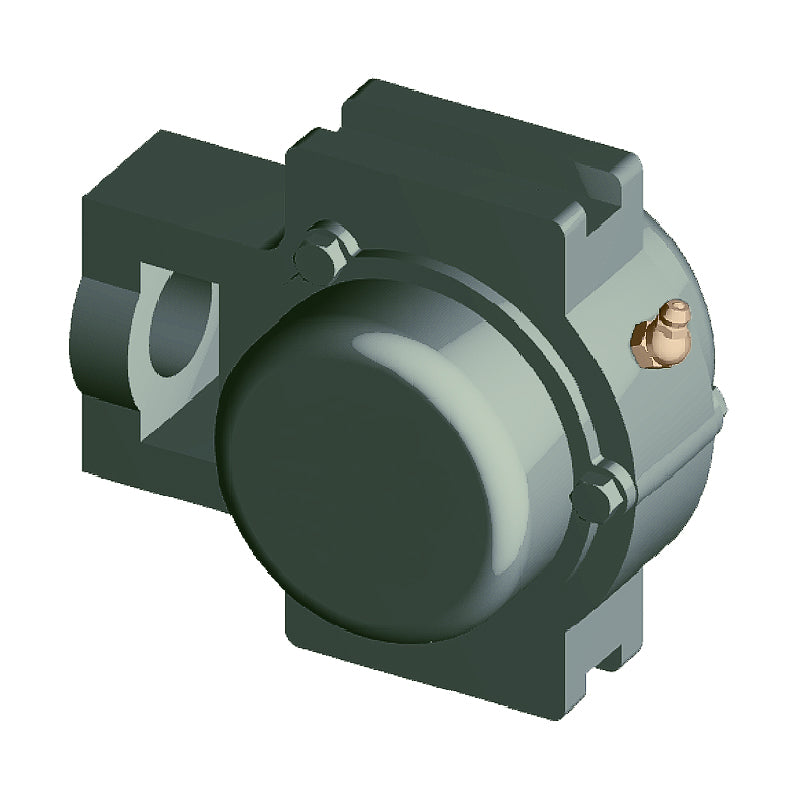

NTN CM-UCT310D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT310D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| N<sub>1</sub> | 27mm |
| L<sub>2</sub> | 22mm |
| H<sub>2</sub> | 98mm |
| N<sub>2</sub> | 61mm |
| N | 37mm |
| L<sub>3</sub> | 106mm |
| A<sub>1</sub> | 20mm |
| H<sub>1</sub> | 140mm |
| H | 151mm |
| L | 192mm |
| A<sub>2</sub> | 40mm |
| A | 61mm |
| r | 74mm |
| L<sub>1</sub> | 118mm |
| B | 61mm |
| S | 22mm |
| t<sub>2</sub> | 15mm |
| L<sub>4</sub> | 197mm |
| A<sub>5</sub> | 120mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 68.5 kN |
| Static load C<sub>0r</sub> | 38.5 kN |
| Fatigue load limit C<sub>u</sub> | 2.99 kN |
| --- | Unit information |
| Mass | 7.1 kg |
