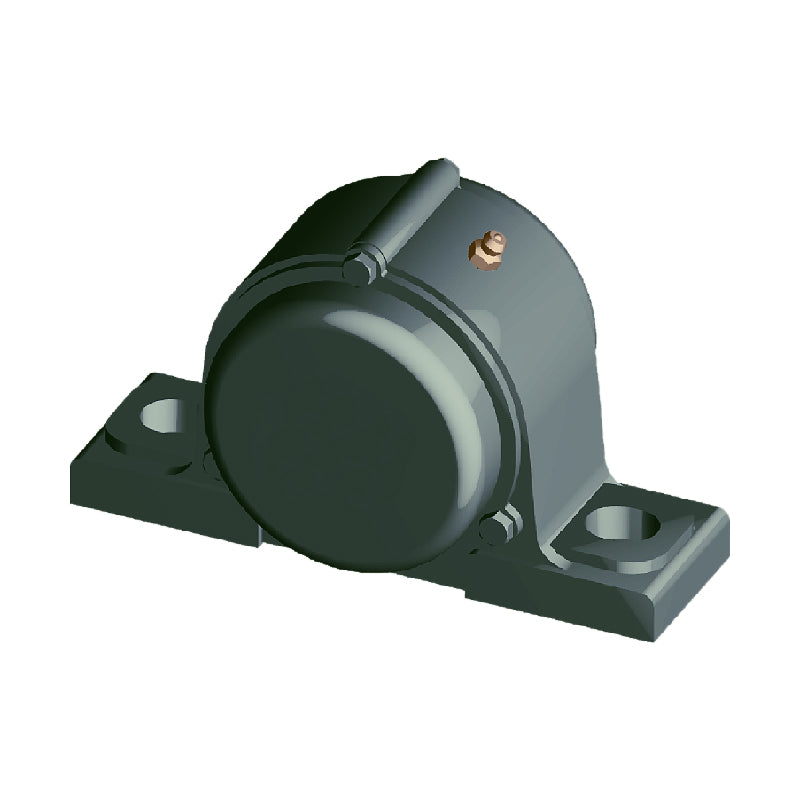

• NTN CM-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCP211D1-NTN

NTN CM-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$150.82 ex VAT
$150.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.52
4+ $67.50
9+ $66.70
19+ $65.90
49+ $65.09
99+ $64.29
499+ $60.27
999+ $59.47
1999+ $58.66
2999+ $57.86
4999+ $56.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter 55mm
H 63.5mm
L 219mm
J 171mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 23mm
H<sub>2</sub> 126mm
L<sub>1</sub> 65mm
B 55.6mm
S 22.2mm
t<sub>2</sub> 11mm
H<sub>3</sub> 130mm
A<sub>5</sub> 100mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 4.4 kg
