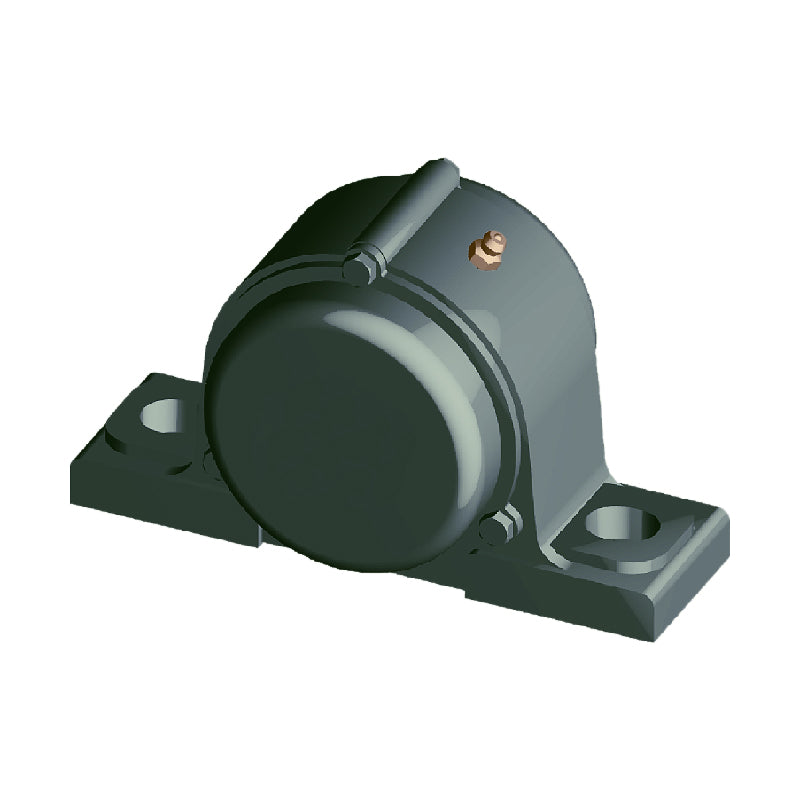

• NTN CM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCP210D1-NTN

NTN CM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
$129.82 ex VAT
$129.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $61.56
4+ $58.10
9+ $57.41
19+ $56.72
49+ $56.03
99+ $55.34
499+ $51.88
999+ $51.19
1999+ $50.49
2999+ $49.80
4999+ $48.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCP
Bolt Hole Centres:
159mm
Technical

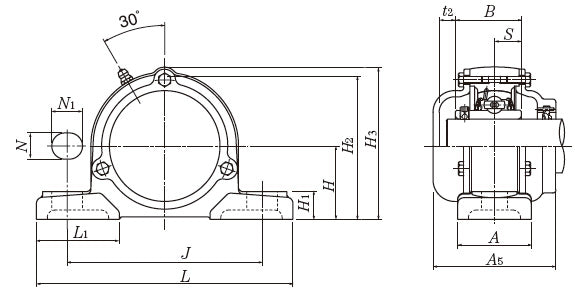

--- Dimensions
Shaft diameter 50mm
H 57.2mm
L 206mm
J 159mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 21mm
H<sub>2</sub> 114mm
L<sub>1</sub> 65mm
B 51.6mm
S 19mm
t<sub>2</sub> 12mm
H<sub>3</sub> 119mm
A<sub>5</sub> 100mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 3.6 kg
