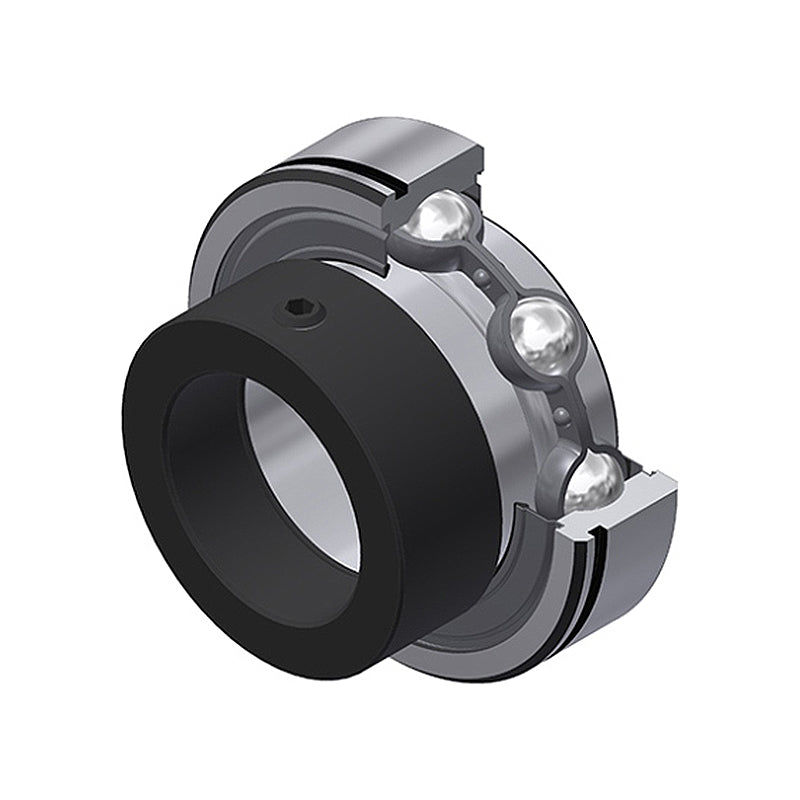

• SNR CES209-27 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter with Eccentric Collar
1 1

SKU: CES209-27-SNR

SNR CES209-27 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter with Eccentric Collar

SNR CES209-27 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter with Eccentric Collar
$57.69 ex VAT
$57.69 ex VAT
Sale Sold out

Equivalent to: CSA209-27

In stock

Price Break
3+ $27.36
5+ $25.82
9+ $25.51
19+ $25.20
49+ $24.90
74+ $24.59
99+ $23.05
199+ $22.75
249+ $22.44
499+ $22.13
999+ $21.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
42.863mm = 1.687 (1-11/16) inch
Outside Diameter:
85mm
Width:
43.7mm
Style:
CES
Technical
d 1-11/16 inch
d 42.863mm
D 85mm
C 19mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 63.5mm
S 9.5mm
a 3.18mm
b 1.9mm
N1 81.81mm
m 6.5mm
r min 1.5mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.8kg
