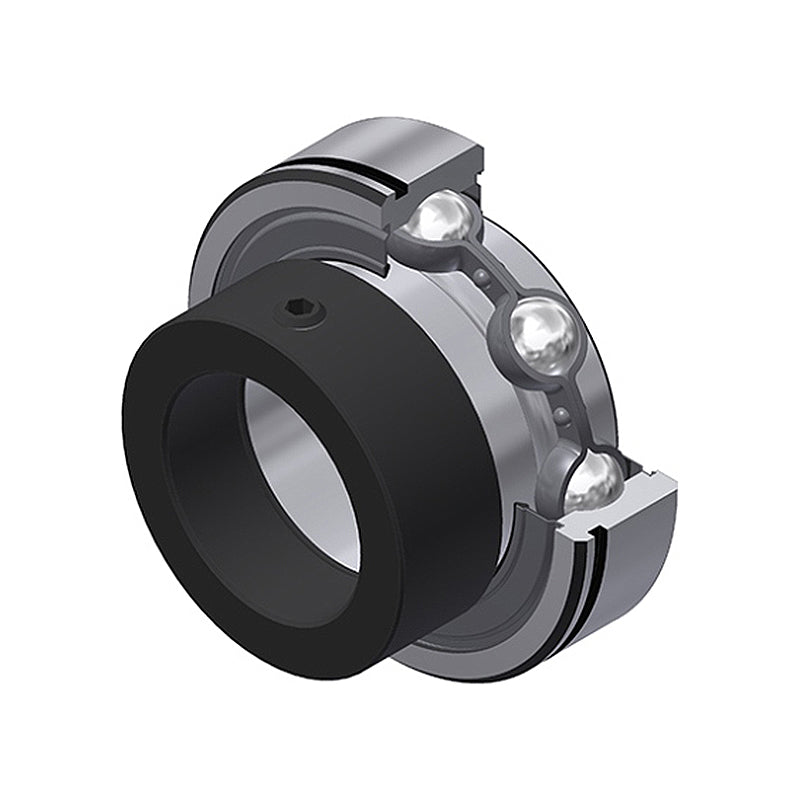

• SNR CES207-22 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
1 1

SKU: CES207-22-SNR

SNR CES207-22 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CES207-22 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
$42.64 ex VAT
$42.64 ex VAT
Sale Sold out

Equivalent to: CSA207-22

In stock

Price Break
3+ $20.22
5+ $19.09
9+ $18.86
19+ $18.63
49+ $18.41
74+ $18.18
99+ $17.04
199+ $16.82
249+ $16.59
499+ $16.36
999+ $15.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
34.925mm = 1.375 (1-3/8) inch
Outside Diameter:
72mm
Width:
38.9mm
Style:
CES
Technical
d 1-3/8 inch
d 34.925mm
D 72mm
C 17mm
B 25.4mm
B1 38.9mm
B2 17.5mm
d1 55.6mm
S 8.5mm
a 3.18mm
b 1.9mm
N1 68.81mm
m 6.5mm
r min 1.5mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 25.7kN
Static load rating C0 15.2kN
Weight 0.5kg
