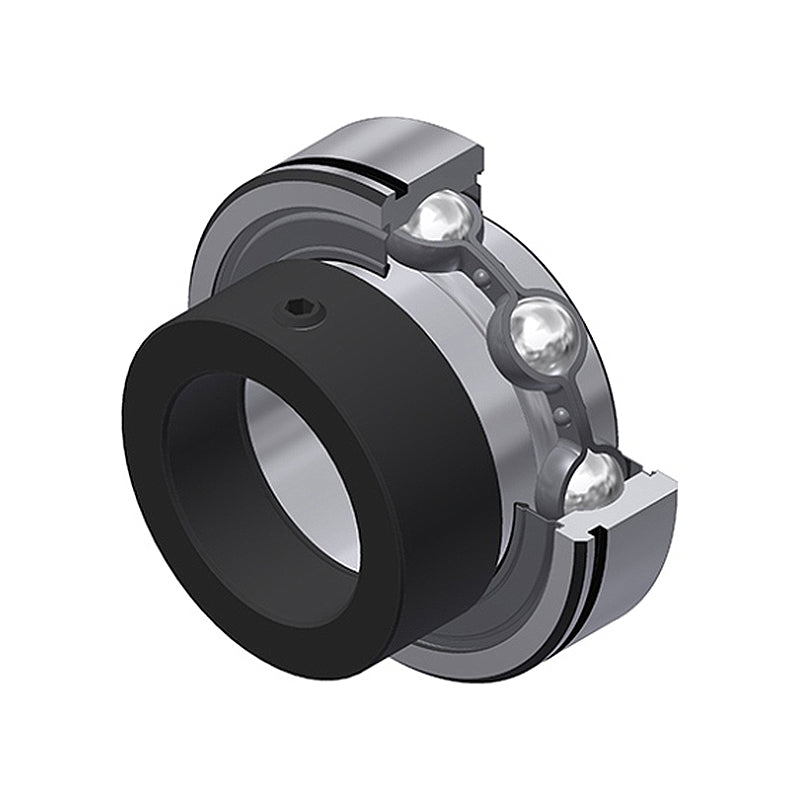

• SNR CES204-12 Imperial Flatback Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
1 1

SKU: CES204-12-SNR

SNR CES204-12 Imperial Flatback Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CES204-12 Imperial Flatback Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
$28.43 ex VAT
$28.43 ex VAT
Sale Sold out

Equivalent to: CSA204-12

In stock

Price Break
3+ $13.48
5+ $12.73
9+ $12.57
19+ $12.42
49+ $12.27
74+ $12.12
99+ $11.36
199+ $11.21
249+ $11.06
499+ $10.91
999+ $10.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
1/4-28UNF
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
47mm
Width:
31mm
Style:
CES
Technical
d 3/4 inch
d 19.05mm
D 47mm
C 14mm
B 21.5mm
B1 31mm
B2 13.5mm
d1 33.3mm
S 7mm
a 4mm
b 1.35mm
N1 44.6mm
m 5mm
r min 1mm
G 1/4-28UNF
Wrench Size 1/8 inch
Set screw torque 3.7 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 12.8kN
Static load rating C0 6.7kN
Weight 0.2kg
