SKU: C10M6-CHI

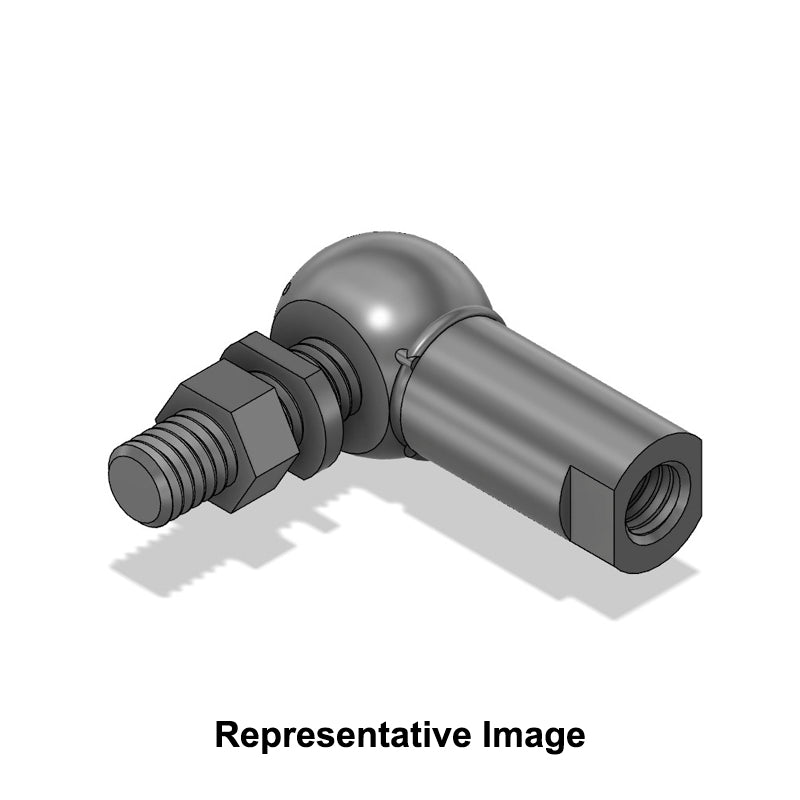

Chiavette C10 Right Hand Steel Ball Joint 10mm Ball Diameter M6 Thread - Allow 2-3 Days
Chiavette C10 Right Hand Steel Ball Joint 10mm Ball Diameter M6 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Ball Joints: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. Crafted with precision engineering and high-quality materials, this ball joint offers superior performance and reliability. These ball joints do NOT feature external holes for a safety clip to be mounted and therefore these ball joints do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M6
- Thread Direction:
- Right Hand
- Outside Diameter:
- 10mm
- Style:
- Standard
- Type:
- Without Safety Clip
Technical
Technical
| --- | Dimensions |
|---|---|
| Thread Direction | Right Hand |
| d1 | 10mm |
| d2 | M6 |
| a | 25mm (+/-0.3) |
| d3 | 10mm (+/-0.5) |
| d4 | 14.8mm (+/-0.5) |
| d6 | 10mm |
| e | 11.5mm |
| h2 | 0.7mm (+/-0.5) |
| l2 | 12.5mm (+/-0.3) |
| l3 | 11mm (+/-0.3) |
| r | 0.3mm |
| sw | 8mm |
| sw1 | 8mm |
| Weight | 0.025 kg |
