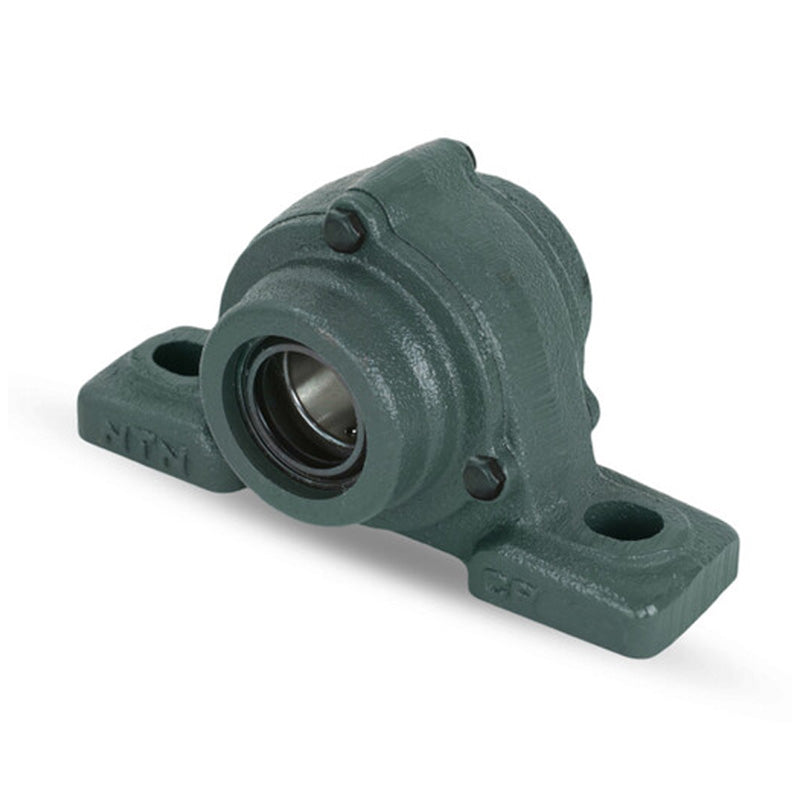

NTN C-UCPX20-314D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-7/8 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCPX20-314D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-7/8 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 98.43mm = 3.875 (3-7/8) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 13-9/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-7/8 inch |
| H | 5 inch |
| L | 17 inch |
| J | 13-9/32 inch |
| A | 4-3/4 inch |
| N | 1-5/16 inch |
| N<sub>1</sub> | 1-13/32 inch |
| H<sub>1</sub> | 1-25/32 inch |
| H<sub>2</sub> | 9-19/32 inch |
| L<sub>1</sub> | 4-29/32 inch |
| B | 4.626 inch |
| S | 1.937 inch |
| H<sub>3</sub> | 9-39/64 inch |
| A<sub>5</sub> | 7-11/16 inch |
| Fixing bolt | 1 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 105 kN |
| Fatigue load limit C<sub>u</sub> | 6.75 kN |
| --- | Unit information |
| Mass | 64 lbs |
