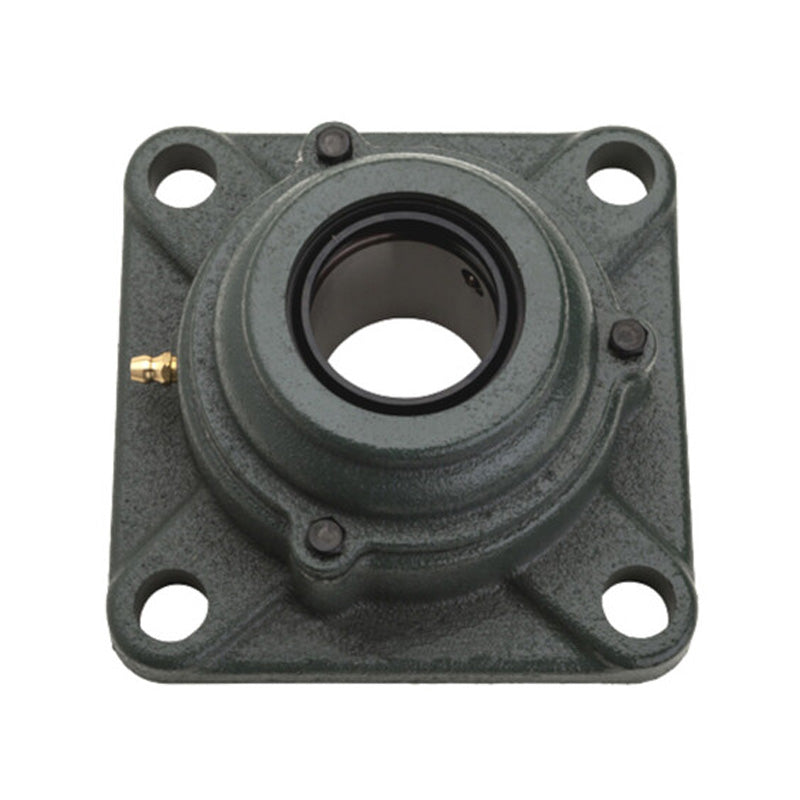

NTN C-UCF322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|

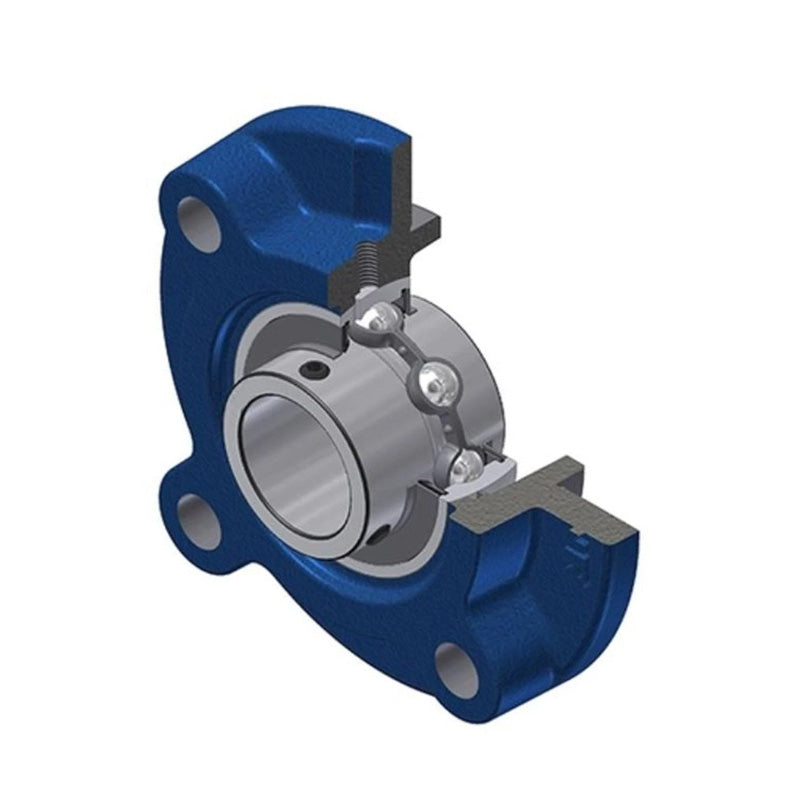

UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCF
- Bolt Hole Centres:
- 266mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 110mm |
| L | 340mm |
| J | 266mm |
| A<sub>2</sub> | 60mm |
| A<sub>1</sub> | 35mm |
| A | 96mm |
| N | 41mm |
| B | 117mm |
| S | 46mm |
| A<sub>5</sub> | 160mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 227 kN |
| Static load C<sub>0r</sub> | 179 kN |
| Fatigue load limit C<sub>u</sub> | 10.5 kN |
| --- | Unit information |
| Mass | 40 kg |
