SKU: C-UCF315-213D1-NTN

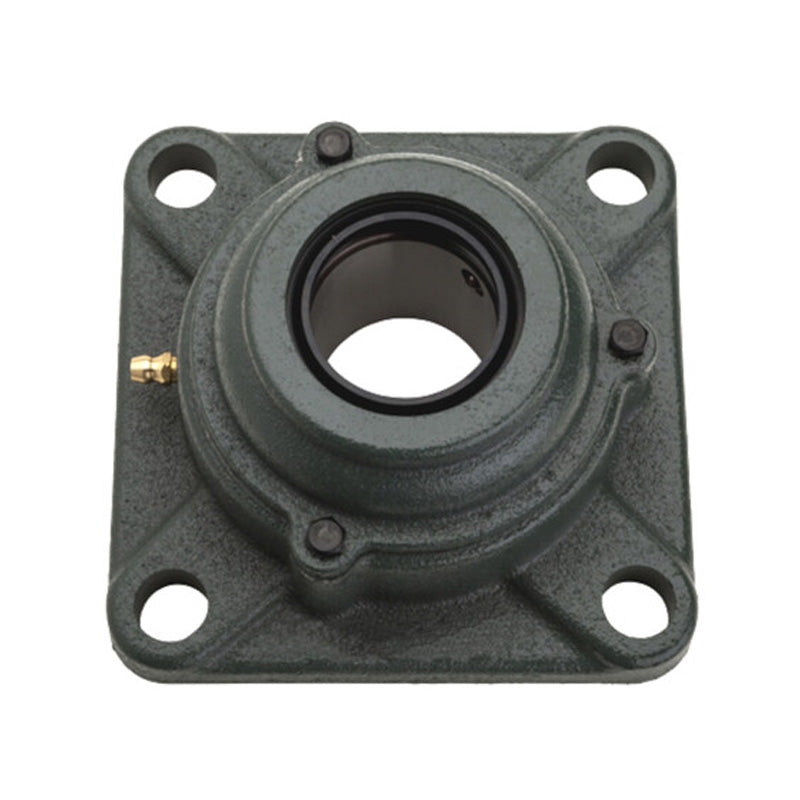

NTN C-UCF315-213D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-13/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF315-213D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-13/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 71.44mm = 2.813 (2-13/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 7-1/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-13/16 inch |
| L | 9-9/32 inch |
| J | 7-1/4 inch |
| A<sub>2</sub> | 1-17/32 inch |
| A<sub>1</sub> | 31/32 inch |
| A | 2-19/32 inch |
| N | 63/64 inch |
| B | 3.2283 inch |
| S | 1.26 inch |
| A<sub>5</sub> | 4-1/2 inch |
| Fixing bolt | 7/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 126 kN |
| Static load C<sub>0r</sub> | 77 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 29 lbs |
