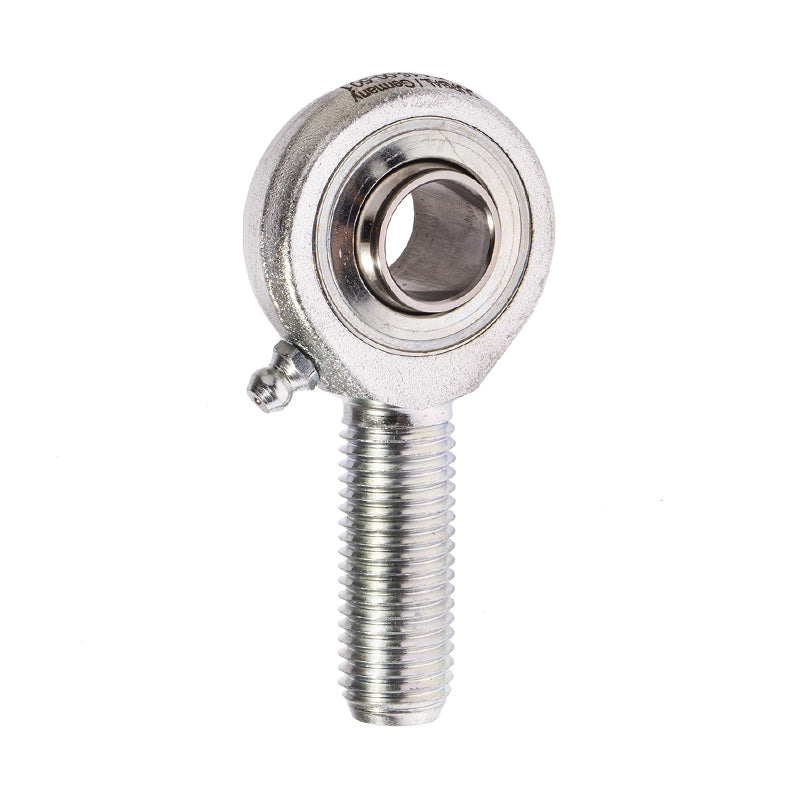

Durbal BRM1/4-00-502 Left Hand Imperial Steel Male Rod End 1/4-28 UNF Thread

DURBAL Heavy-Duty Male Rod Ends with Integral Self-Aligning Roller Bearing: Threaded male rod end consisting of a galvanised forged steel housing with hardened super finished steel ball bearings running in a steel raceway. For high speeds, wide swivelling angles or rotating movements. These rod ends have lower bearing friction compared to other similar housings. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Low maintenance due to long-term lubrication with food-grade approval; the rod ends may be subsequently lubricated by means of a funnel or conical grease nipple. Temperature range: -45° C to +120° C.
Benefits: Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.

Brand / Quality:

Durbal - High Quality

Thread Size:

1/4-28 UNF

Thread M / F:

Male

Thread Direction:

Left Hand

Inside Diameter:

6.35mm = 0.25 (1/4) inch
