SKU: BR.405224

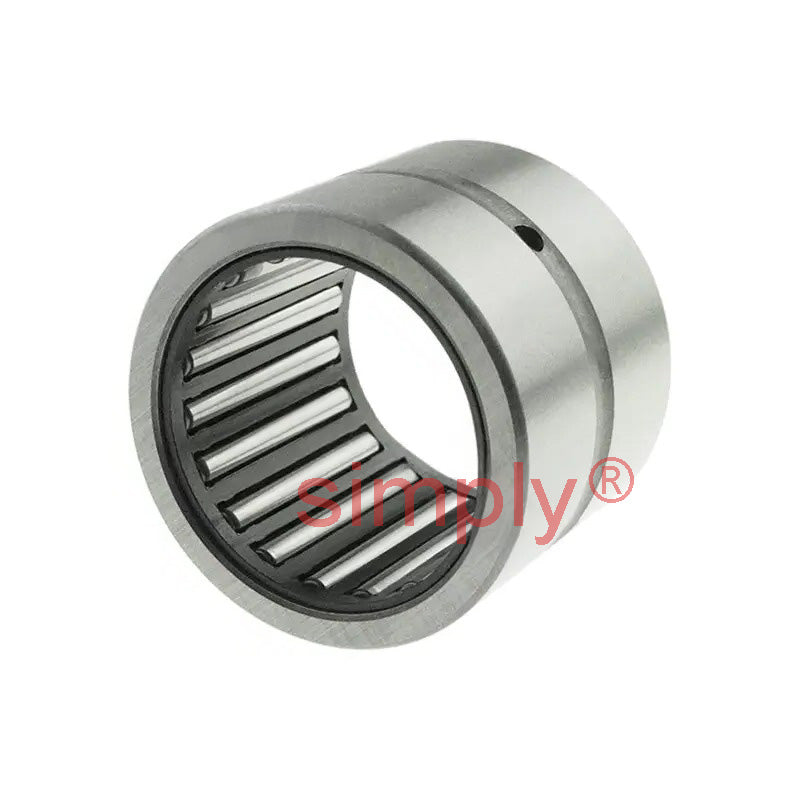

BR405224 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-1/2x3-1/4x1-1/2 inch
BR405224 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-1/2x3-1/4x1-1/2 inch
Regular price
$67.62
ex VAT
Regular price
Sale price
$67.62
ex VAT
Equivalent to: HJ405224 HJ-405224 MR40N MR-40-N SJ8446 NCS4024
In stock
Price Break
10+
$32.07
20+
$30.27
30+
$29.91
40+
$29.55
50+
$29.19
75+
$28.83
100+
$27.02
200+
$26.66
250+
$26.30
500+
$25.94
1000+
$25.22
Quantity
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch

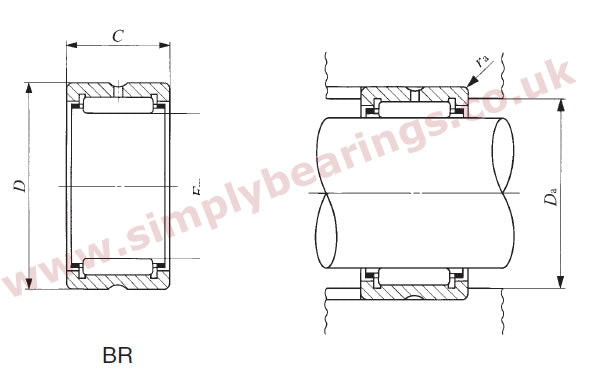

Technical
Technical
| Fw | 2-1/2 inch |
|---|---|
| D | 3-1/4 inch |
| C | 1-1/2 inch |
| Dynamic Load Cor | 94600 N |
| Static Load Cr | 174000 N |
| Weight | 0.475 kg |
