SKU: BK2216-MB

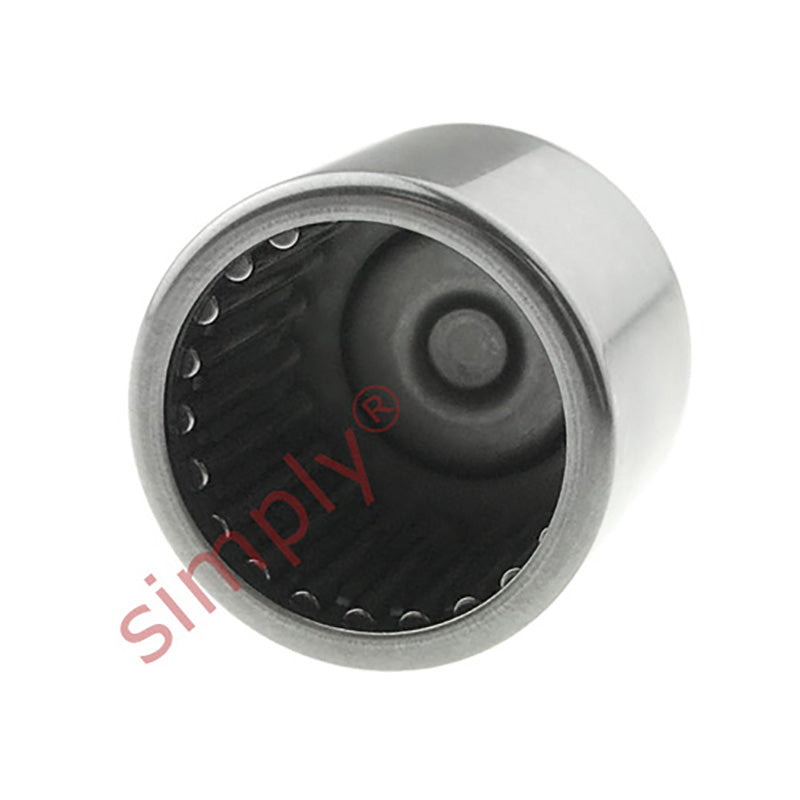

Major Brand BK2216 Drawn Cup Type Needle Roller Bearing with One Closed End 22x28x16mm
Major Brand BK2216 Drawn Cup Type Needle Roller Bearing with One Closed End 22x28x16mm
Regular price
$16.89
ex VAT
Regular price
Sale price
$16.89
ex VAT
In stock
Price Break
10+
$8.01
19+
$7.56
29+
$7.47
39+
$7.38
49+
$7.29
74+
$7.20
99+
$6.75
199+
$6.66
249+
$6.57
499+
$6.48
999+
$6.30
Quantity
Couldn't load pickup availability
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 16mm |
| Dynamic load | 13000 N |
| Static load | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| C1 | 13.3mm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x16 |
| Seal | G/SD22x28x4 |
| Weight | 24 g |
