SKU: BK0810-MB
Major Brand BK0810 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x10mm
Major Brand BK0810 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x10mm
Regular price
$10.44
ex VAT
Regular price
Sale price
$10.44
ex VAT
In stock
Price Break
10+
$4.95
19+
$4.67
29+
$4.62
39+
$4.56
49+
$4.51
74+
$4.45
99+
$4.17
199+
$4.12
249+
$4.06
499+
$4.01
999+
$3.90
Quantity
Couldn't load pickup availability
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 10mm

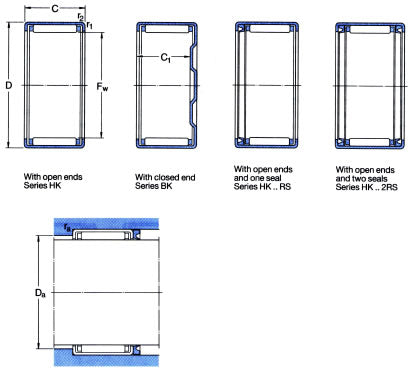

Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 10mm |
| Dynamic load | 3690 N |
| Static load | 4050 N |
| Fatigue load limit Pu | 440 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| C1 | 8.4mm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Inner ring | IR5x8x12 |
| Seal | G8x12x3 |
| Weight | 3.4 g |
