SKU: BGSB634150.MB

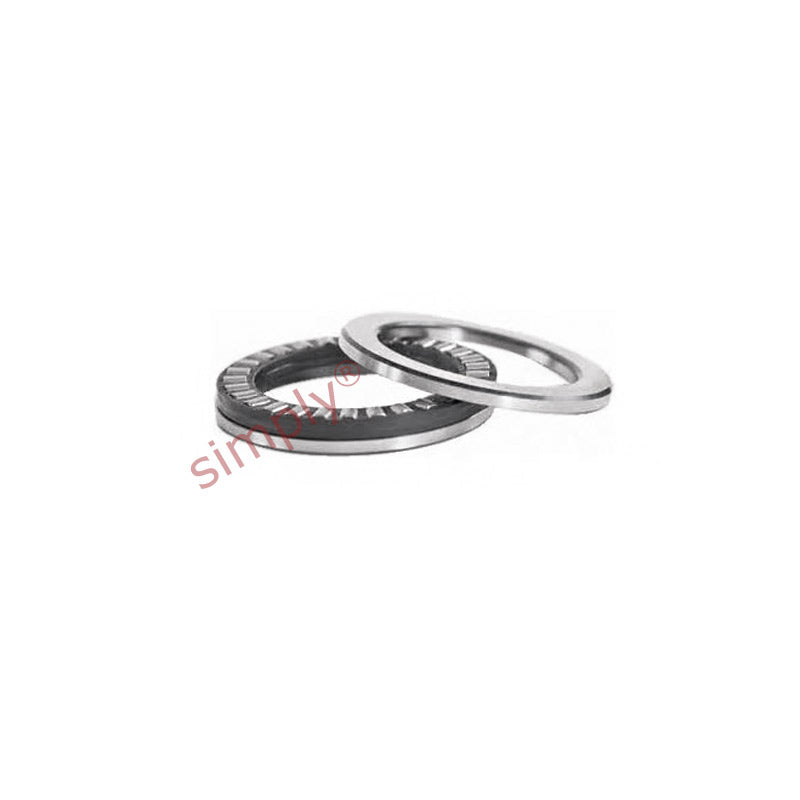

Major Brand BGSB634150 Cylindrical Roller Thrust Bearing 1680x1800x75mm
Major Brand BGSB634150 Cylindrical Roller Thrust Bearing 1680x1800x75mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1680mm
- Outside Diameter:
- 1800mm
- Width:
- 75mm
Technical
Technical
| d | 1680mm |
|---|---|
| D | 1800mm |
| H | 75mm |
| Dynamic load C | 2120 kN |
| Static load Co | 23600 kN |
| Fatigue load limit Pu | 1080 kN |
| Min load factor A | 45 |
| Reference speed | 130 rpm |
| Limiting speed | 260 rpm |
| Weight | 175 kg |
