SKU: BB-RT-01-60-GL

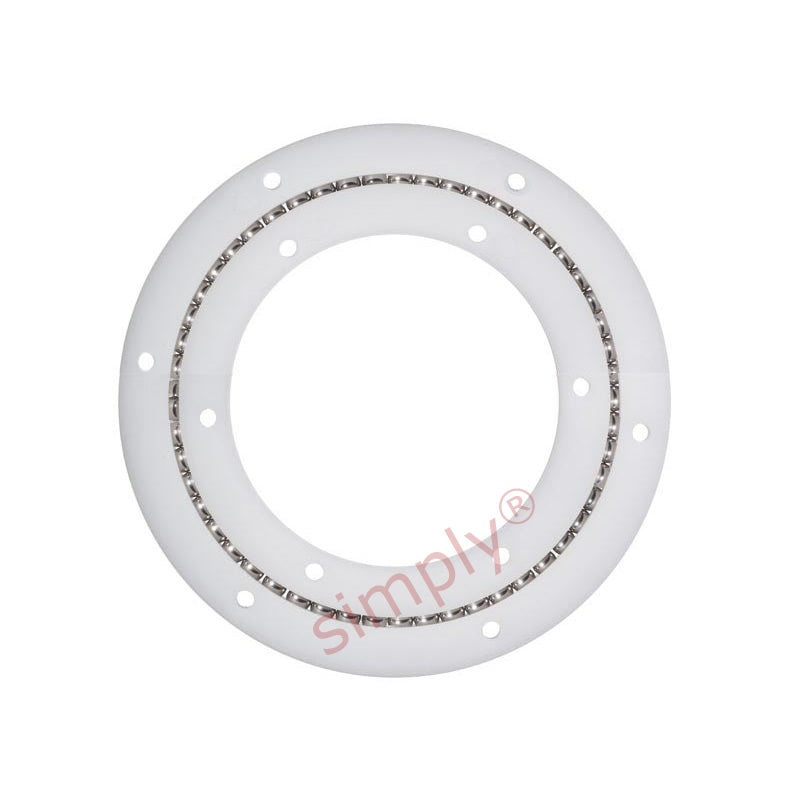

xiros xirodur BBRT0160GL Slewing Ring Bearing with Glass Balls 60x100x17.5mm - Allow 2-3 Days
xiros xirodur BBRT0160GL Slewing Ring Bearing with Glass Balls 60x100x17.5mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 100mm
- Width:
- 17.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 100mm |
|---|---|
| D1 | 90mm |
| d | 60mm |
| d1 | 68mm |
| H | 17.5mm |
| h | 2.5mm |
| T | 60 degrees |
| K1 | 3.3mm |
| K2 | 3.3mm |
| Static load capacity | 800 N |
| Dynamic load capacity | 250 N |
| Max speed | 1000 rpm |
| Race | B180 |
| Ball material | Glass |
