SKU: BB-626-A500-70-ES

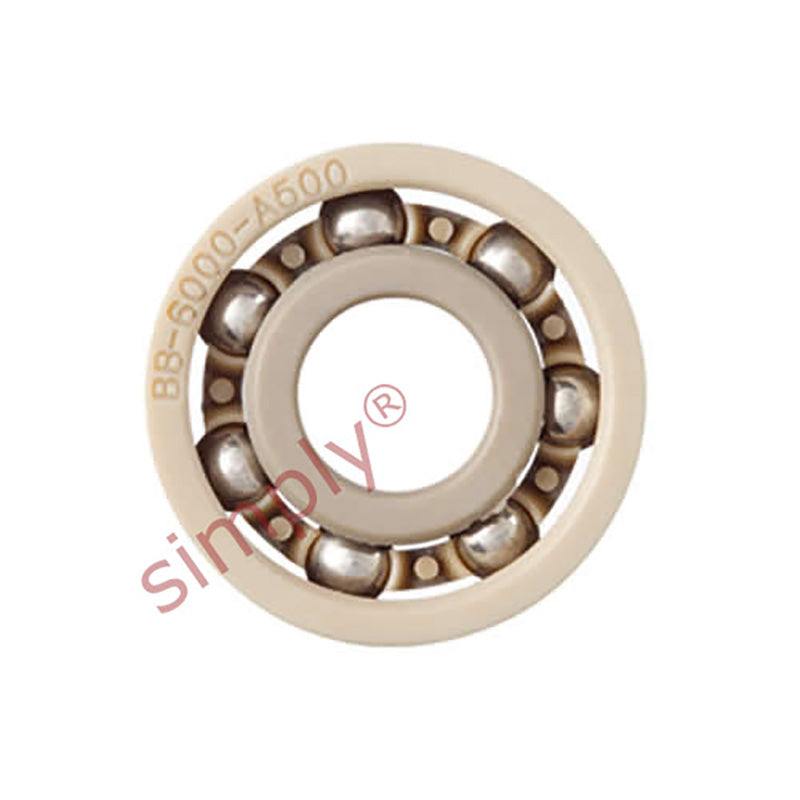

xiros xirodur BB626A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 6x19x6mm - Allow 2-3 Days
xiros xirodur BB626A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 6x19x6mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PEEK cages and stainless steel balls. The inner rings, outer rings and cages of these bearings are made of FDA-compliant plastics making these bearings suitable for use in the food industry. These bearings are suitable for high temperatures up to +150 deg C. Benefits: Made of FDA approved plastics, lubrication- and maintenance-free, corrosion-resistant, non-magnetic, washable, lightweight, high-temperature range, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical
| d1 | 6mm |
|---|---|
| d2 | 19mm |
| b1 | 6mm |
| Max static axial load | 125 N |
| Static load capacity | 60 N |
| Dynamic load capacity | 81 N |
| Max speed | 3200 rpm |
| Race | A500 |
| Cage | PEEK |
| Ball material | Stainless Steel |
