SKU: BB-608-C160-20-GL

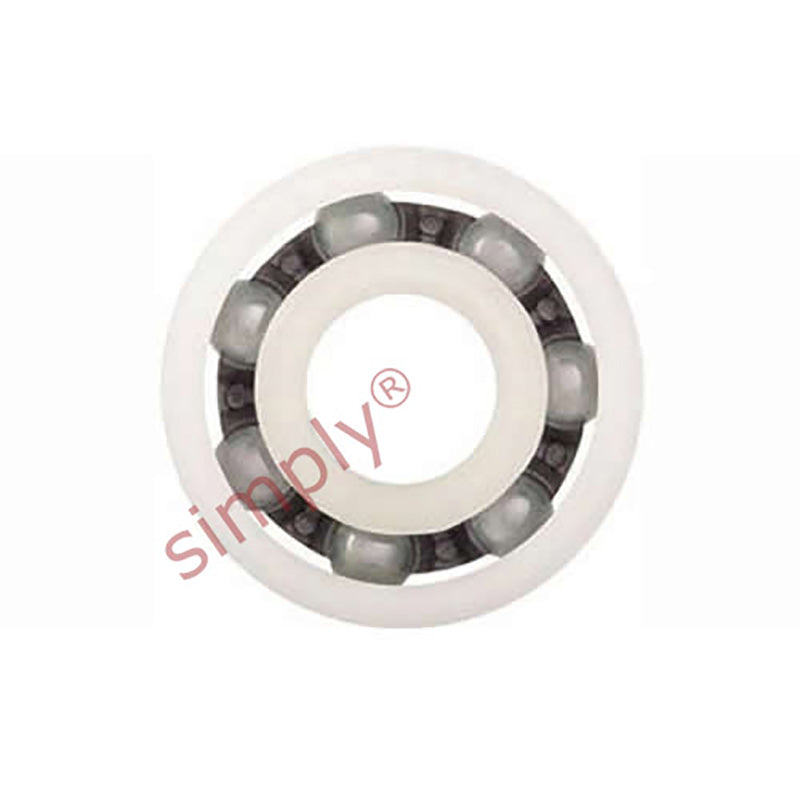

xiros xirodur BB608C16020GL Open Type Ball Bearing with PP Cage and Glass Balls 8x22x7mm - Allow 2-3 Days
xiros xirodur BB608C16020GL Open Type Ball Bearing with PP Cage and Glass Balls 8x22x7mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® C160 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PP cages and glass balls. The ball bearing material xirodur® C160 offers extreme media resistance. These bearings are suitable for temperatures up to +80 deg C. Benefits: Lubrication- and maintenance-free, resistant to corrosion and chemicals, lightweight, non-magnetic, washable, low friction, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 22mm |
| Width | 7mm |
| Max static load axial | 50 N |
| Static load rating | 48 N |
| Dynamic load rating | 67 N |
| Max speed | 2200 rpm |
| Race | C160 |
| Cage | PP |
| Ball Material | Glass |
