SKU: BB-6003-B180-10-ES-C

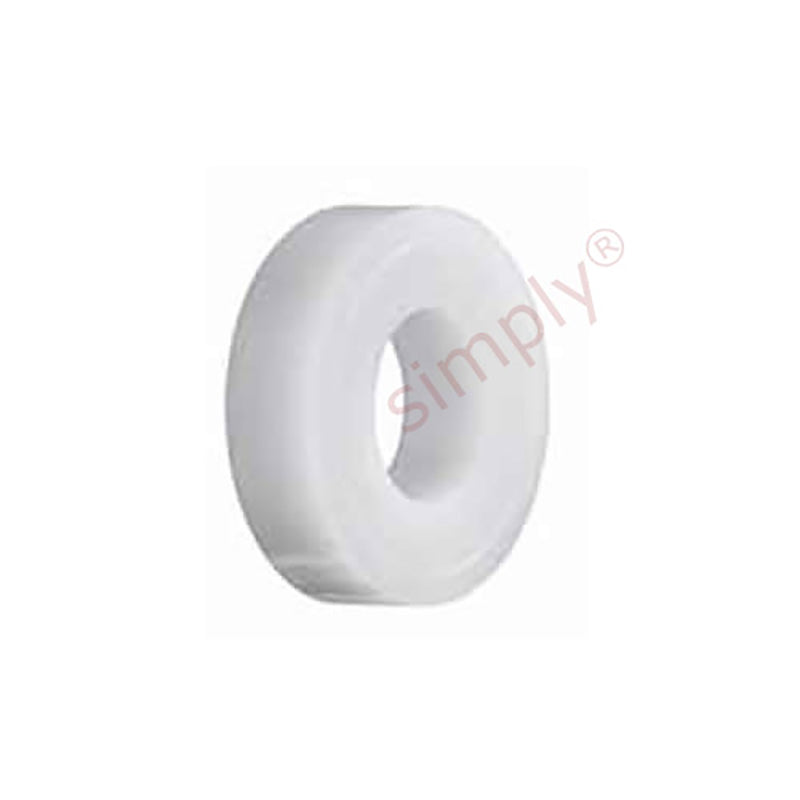

xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 2-3 Days
xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 2-3 Days
Regular price
$75.97
ex VAT
Regular price
Sale price
$75.97
ex VAT
In stock
Price Break
5+
$36.03
9+
$34.01
29+
$33.60
49+
$33.20
99+
$32.79
199+
$32.39
299+
$30.36
399+
$29.96
499+
$29.55
749+
$29.15
999+
$28.34
Quantity
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, stainless steel balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical

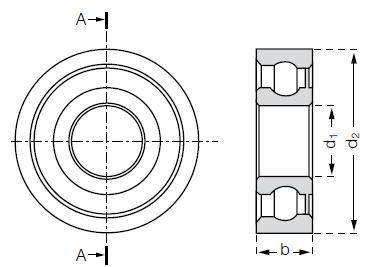

| d1 | 17mm |
|---|---|
| d2 | 35mm |
| b | 10mm |
| Max static axial load | 360 N |
| Static load capacity | 180 N |
| Dynamic load capacity | 250 N |
| Max speed | 1400 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
