SKU: BB-6000-D180-10-GL

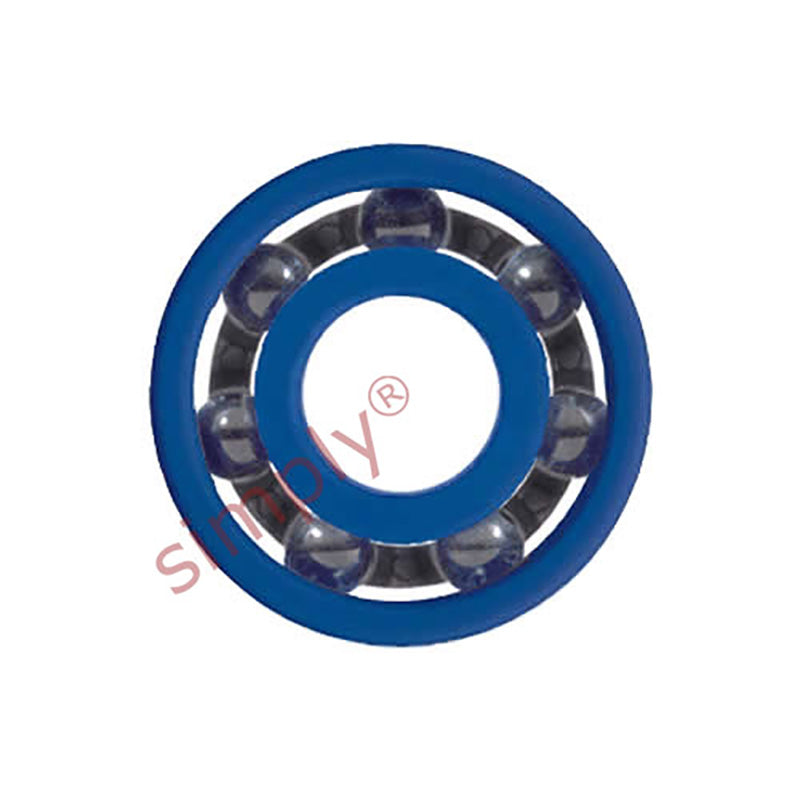

xiros xirodur BB6000D18010GL Open Type Polymer Ball Bearing with PA Cage and Glass Balls 10x26x8mm - Allow 2-3 Days
xiros xirodur BB6000D18010GL Open Type Polymer Ball Bearing with PA Cage and Glass Balls 10x26x8mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® D180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. Bearings of this specially developed material xirodur® D180 are suitable for high rotating speeds. They are extremely wear resistant and archive a very high lifetime. Benefits: Lubrication- and maintenance-free, for high rotation speeds, long service life (up to 4x better than xirodur® B180), light weight |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 26mm |
| b1 | 8mm |
| Max static load capacity | 10 N |
| Static load capacity | 26 N |
| Dynamic load capacity | 55 N |
| Max speed | 4200 rpm |
| Race | D180 |
| Cage | PA |
| Ball material | Glass |
