SKU: B152015/253

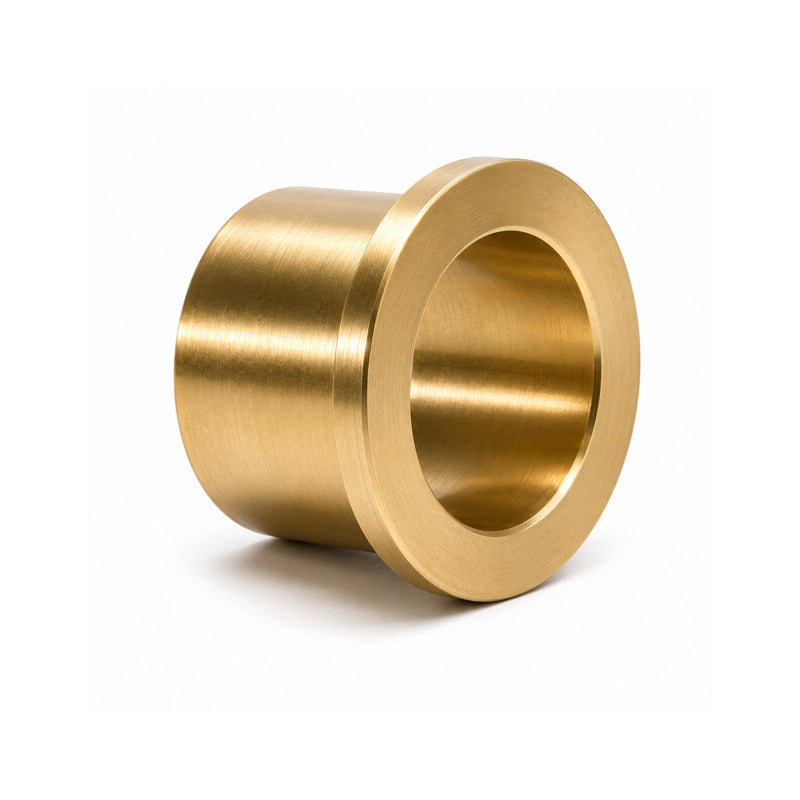

AMES B-15-20-15/25-3 Metric Flanged Sintered Bronze Bush 15x20x15mm
AMES B-15-20-15/25-3 Metric Flanged Sintered Bronze Bush 15x20x15mm
Regular price
$33.67
ex VAT
Regular price
Sale price
$33.67
ex VAT
In stock
Price Break
10+
$15.97
19+
$15.07
29+
$14.89
39+
$14.71
49+
$14.53
74+
$14.35
99+
$13.45
199+
$13.28
249+
$13.10
499+
$12.92
999+
$12.56
Quantity
Couldn't load pickup availability
Description
Description
Sintered Bronze Bush Bearing: Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. These Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
- Brand / Quality:
- AMES - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 20mm
- Width:
- 15mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 20mm |
| B | 15mm |
| D1 | 27mm |
| B1 | 3mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.018 kg |
