SKU: AXK1024-EU
AXK1024 Budget Needle Roller Cage Only 10x24x2mm
AXK1024 Budget Needle Roller Cage Only 10x24x2mm
Regular price
$4.80
ex VAT
Regular price
Sale price
$4.80
ex VAT
In stock
Price Break
10+
$2.28
19+
$2.15
29+
$2.13
39+
$2.10
49+
$2.07
74+
$2.05
99+
$1.92
199+
$1.89
249+
$1.87
499+
$1.84
999+
$1.79
Quantity
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 24mm
- Width:
- 2mm

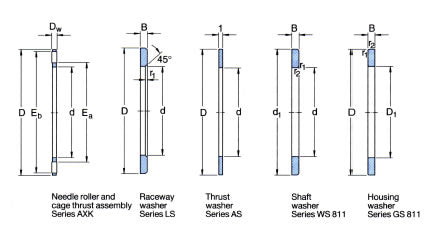

Technical
Technical
| d | 10mm |
|---|---|
| D | 24mm |
| Dw | 2mm |
| Ea | 12mm |
| Eb | 23mm |
| Dynamic load C | 8500 N |
| Static load Co | 26000 N |
| Fatigue load limit Pu | 2850 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 4800 rpm |
| Weight (Assembly) | 3 g |
| D | 24mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 7 g |
| Weight AS | 3 g |
| Raceway washer | LS1024 |
| Thrust washer | AS1024 |
