SKU: ASPP205-NTN

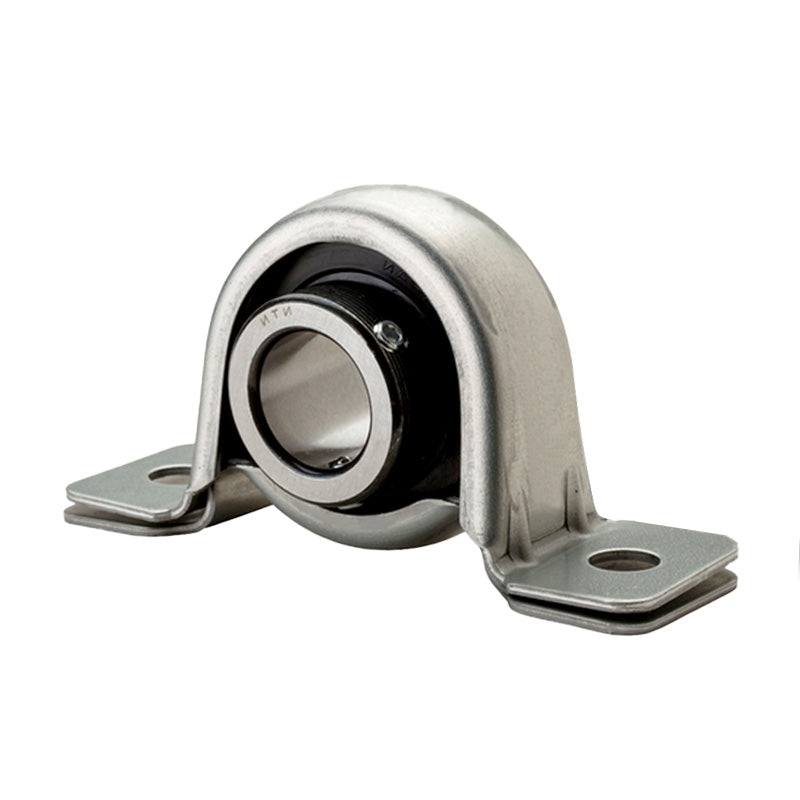

NTN ASPP205 Metric Pressed Steel Two Bolt Plummer Block Housing with 25mm Insert - Allow 2-3 Days
NTN ASPP205 Metric Pressed Steel Two Bolt Plummer Block Housing with 25mm Insert - Allow 2-3 Days
Out of stock
Description
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- ASPP
- Bolt Hole Centres:
- 86mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 28.6mm |
| L | 108mm |
| J | 86mm |
| A | 32mm |
| N | 11.5mm |
| H<sub>1</sub> | 4mm |
| H<sub>2</sub> | 56.6mm |
| B | 27mm |
| S | 7.5mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Max load recommended radial | 3500 N |
| Max load recommended axial | 1400 N |
| --- | Unit information |
| Mass | 0.3 kg |
