SKU: ASPP205-015-NTN

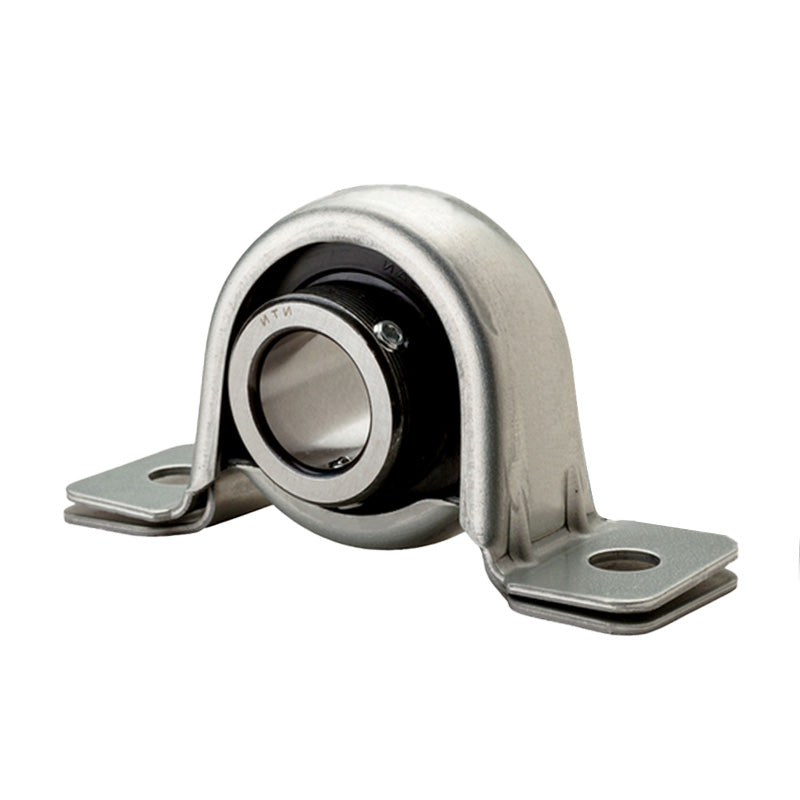

NTN ASPP205-015 Imperial Pressed Steel Two Bolt Plummer Block Housing with 15/16 inch Insert - Allow 2-3 Days
NTN ASPP205-015 Imperial Pressed Steel Two Bolt Plummer Block Housing with 15/16 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- ASPP
- Bolt Hole Centres:
- 3-3/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15/16 inch |
| H | 1-1/8 inch |
| L | 4-1/4 inch |
| J | 3-3/8 inch |
| A | 1-1/4 inch |
| N | 29/64 inch |
| H<sub>1</sub> | 0.157 inch |
| H<sub>2</sub> | 2-7/32 inch |
| B | 1.063 inch |
| S | 0.295 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Max load recommended radial | 770 lbf |
| Max load recommended axial | 280 lbf |
| --- | Unit information |
| Mass | 0.7 lbs |
