SKU: ASFB207D1-NTN

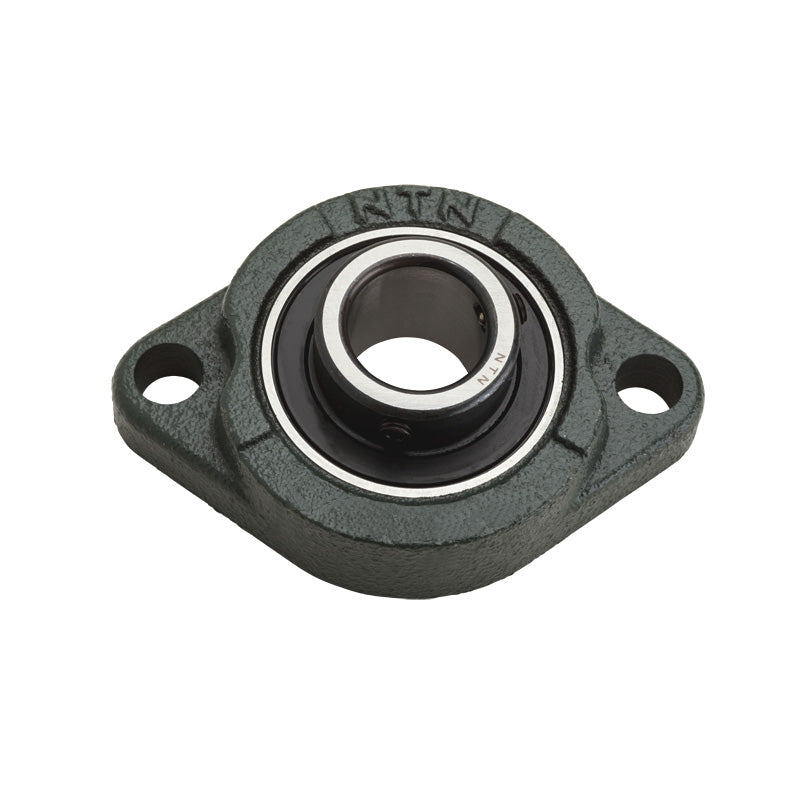

NTN ASFB207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
NTN ASFB207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- ASFB
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 122mm |
| J | 100mm |
| A<sub>2</sub> | 11mm |
| A<sub>1</sub> | 13mm |
| A | 24mm |
| N | 12mm |
| L | 89mm |
| A<sub>0</sub> | 36.5mm |
| B | 34mm |
| S | 8.5mm |
| Fixing bolt | M10 |
| Mass | 0.8 kg |
