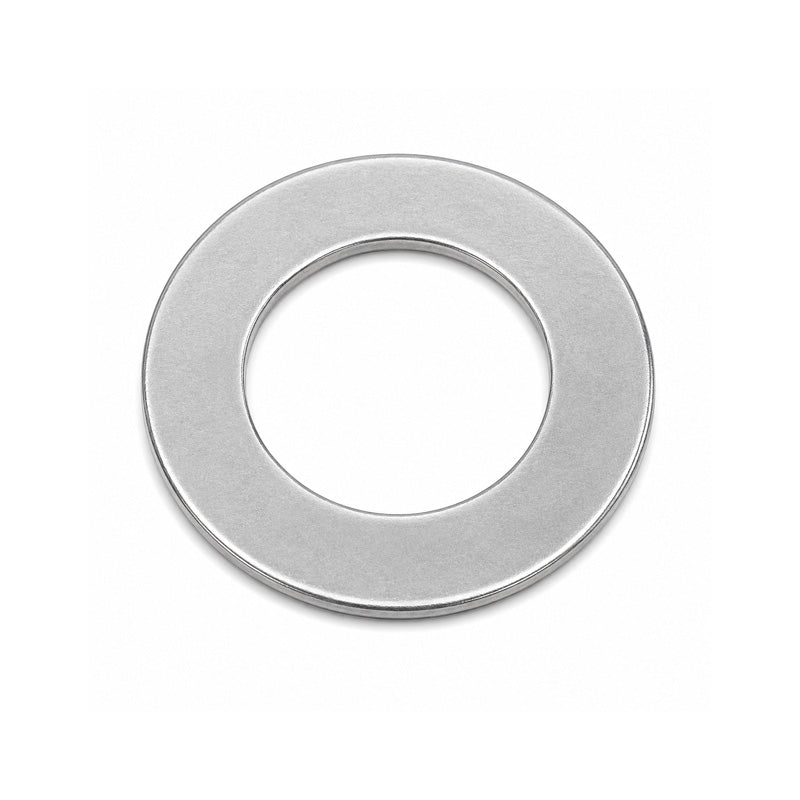

• AS75100 Major Brand Thrust Washer Series AS 75x100x1mm
1 1

SKU: AS75100-MB

AS75100 Major Brand Thrust Washer Series AS 75x100x1mm

AS75100 Major Brand Thrust Washer Series AS 75x100x1mm
$12.67 ex VAT
$12.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $6.02
19+ $5.68
29+ $5.61
39+ $5.55
49+ $5.48
74+ $5.41
99+ $5.07
199+ $5.00
249+ $4.94
499+ $4.87
999+ $4.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
75mm
Outside Diameter:
100mm
Width:
1mm
Technical
d 75mm
d1 100mm
D 100mm
D1 77mm
B 1mm
r1r2 1mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 140 g
