SKU: AHX32226-MB

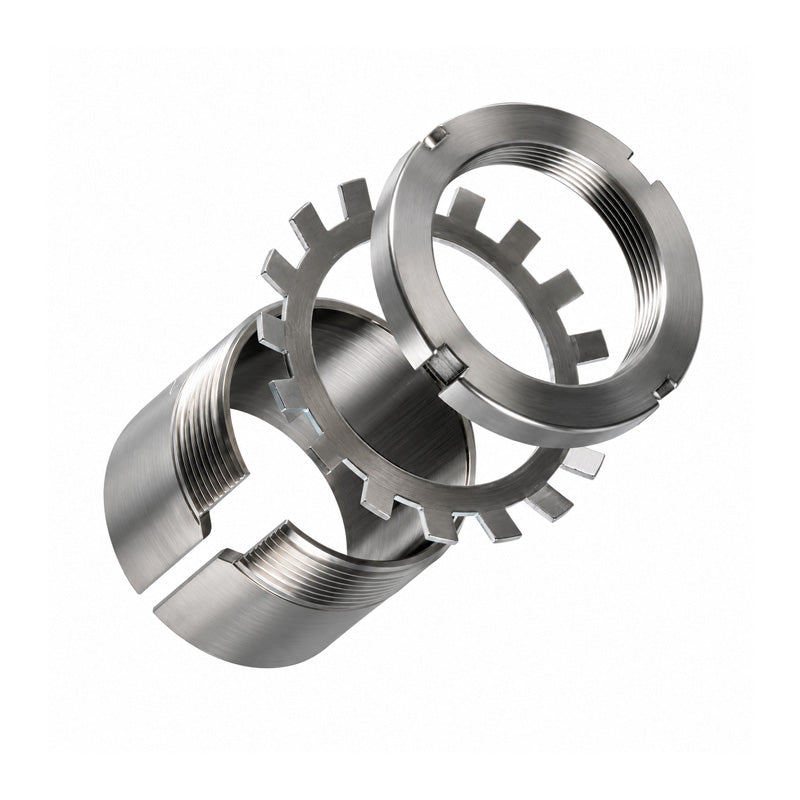

Major Brand AHX32226 Withdrawal Sleeve for 105mm shaft
Major Brand AHX32226 Withdrawal Sleeve for 105mm shaft
Out of stock
Share this product
Description
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 110mm
- Width:
- 82mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 105mm |
| d | 110mm |
| B1 | 82mm |
| B2 | 86mm |
| G | Thread 120x2mm |
| G1 | 11mm |
| Weight | 1 kg |
| --- | Assembly Parts |
| Sleeve | AHX32226 |
| Nut | KM24 |
| Hydraulic nut | HMV24E |
