SKU: AELPFL203W3-NTN

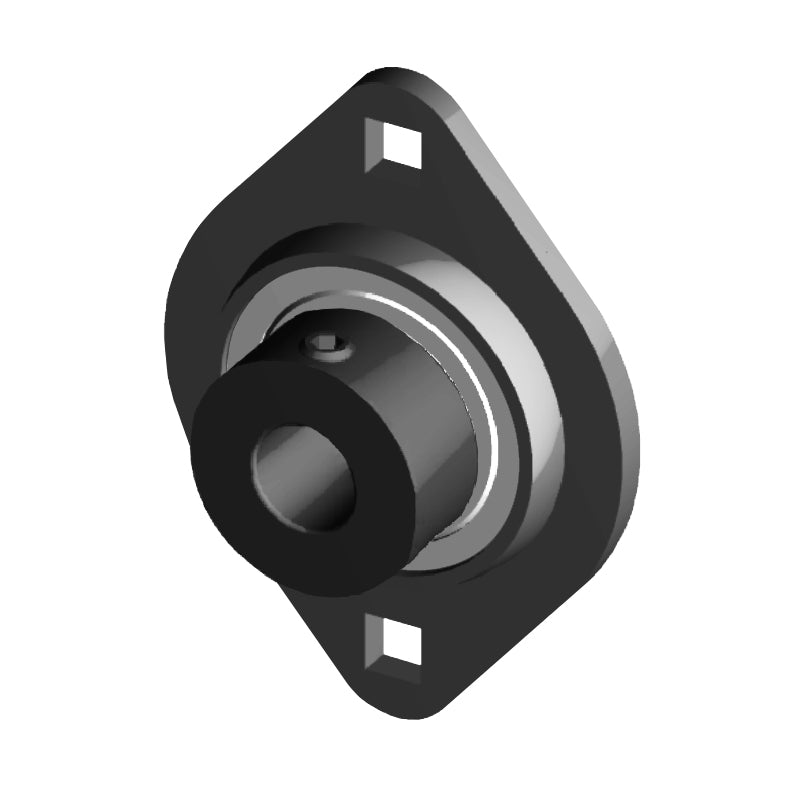

NTN AELPFL203W3 Metric Two Bolt Oval Pressed Steel Bearing Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days
NTN AELPFL203W3 Metric Two Bolt Oval Pressed Steel Bearing Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
|
AELPFL200 Series 2 Bolt Pressed Steel Oval Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- AELPFL
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| H | 81mm |
| J | 63.5mm |
| A<sub>1</sub> | 4mm |
| N | 7.1mm |
| A | 14mm |
| L | 59mm |
| B<sub>1</sub> | 28.6mm |
| S | 6.5mm |
| H<sub>1</sub> | 49mm |
| Fixing bolt | M6 |
| --- | Load rating |
| Max load recommended radial | 2700 N |
| Max load recommended axial | 1350 N |
| --- | Unit information |
| Mass | 0.2 kg |
