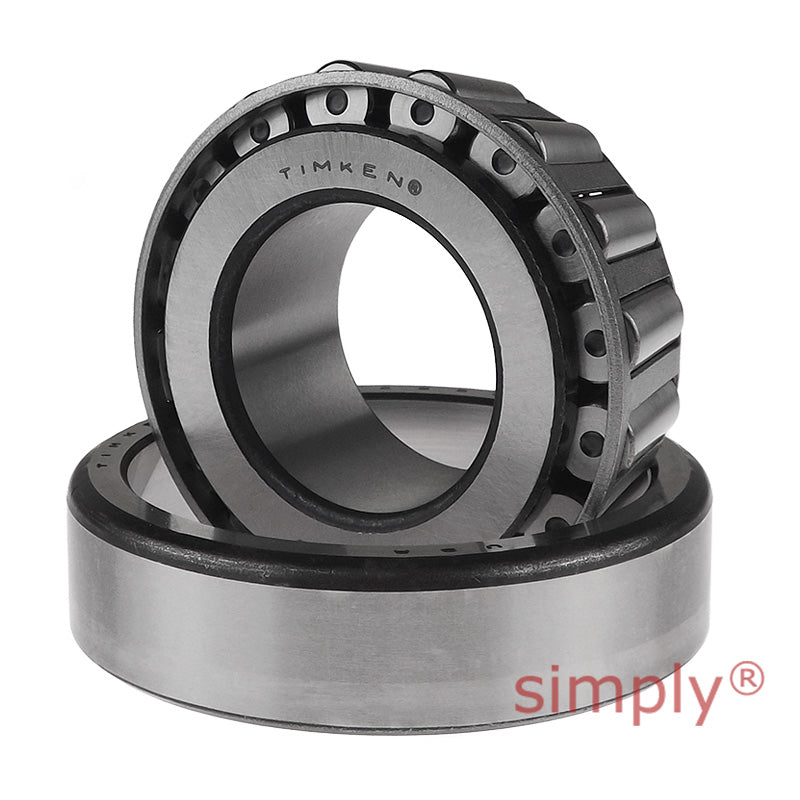

• Timken A4044/A4138 TS Single-Row Taper Roller Bearing 0.4375x1.3775x0.433 inch
1 1

SKU: A4044/A4138-TIM

Timken A4044/A4138 TS Single-Row Taper Roller Bearing 0.4375x1.3775x0.433 inch

Timken A4044/A4138 TS Single-Row Taper Roller Bearing 0.4375x1.3775x0.433 inch
$233.35 ex VAT
$233.35 ex VAT
Sale Sold out

In stock

Price Break
10+ $110.65
20+ $104.44
30+ $103.19
40+ $101.95
50+ $100.71
75+ $99.46
100+ $93.25
200+ $92.00
250+ $90.76
500+ $89.52
1000+ $87.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
11.11mm = 0.437 (7/16) inch
Outside Diameter:
34.99mm = 1.377 inch
Width:
10.998mm = 0.433 inch
Technical
d 11.112mm = 0.4375 inch
D 34.988mm = 1.3775 inch
T 10.998mm = 0.433 inch
Dynamic (1) C1 12200N
Factors (5) e 0.45
Factors (5) Y 1.32
Dynamic (2) C90 3160N
Dynamic (2) Ca90 2450N
Factors (5) K 129
Static C0 11500N
Bearing B 10.988mm = 0.4326 inch
Bearing C 8.73mm = 0.3437 inch
Bearing a(3) -2.5mm = -0.1 inch
Shaft max shaft fillet radius R(4) 1.3mm = 0.05 inch
Shaft backing shoulder diameter da 15.5mm = 0.61 inch
Shaft backing shoulder diameter db 17.5mm = 0.69 inch
Housing backing shoulder diameter r(4) 1.3mm = 0.05 inch
Housing backing shoulder diameter Da 32mm = 1.26 inch
Housing backing shoulder diameter Db 29mm = 1.14 inch
Cage Aa 0.1mm = 0 inch
Cage Ab 1.1mm = 0.04 inch
G1 2.3
G2 4.12
Cg 0.0355
