SKU: 97500D/97900/Y3S-97900-TIM

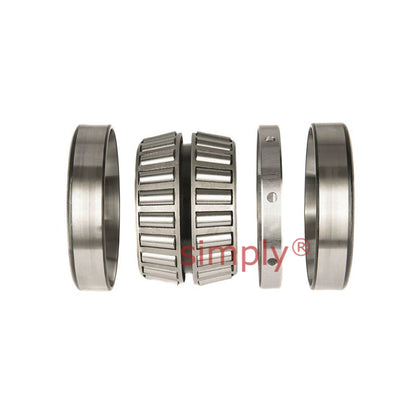

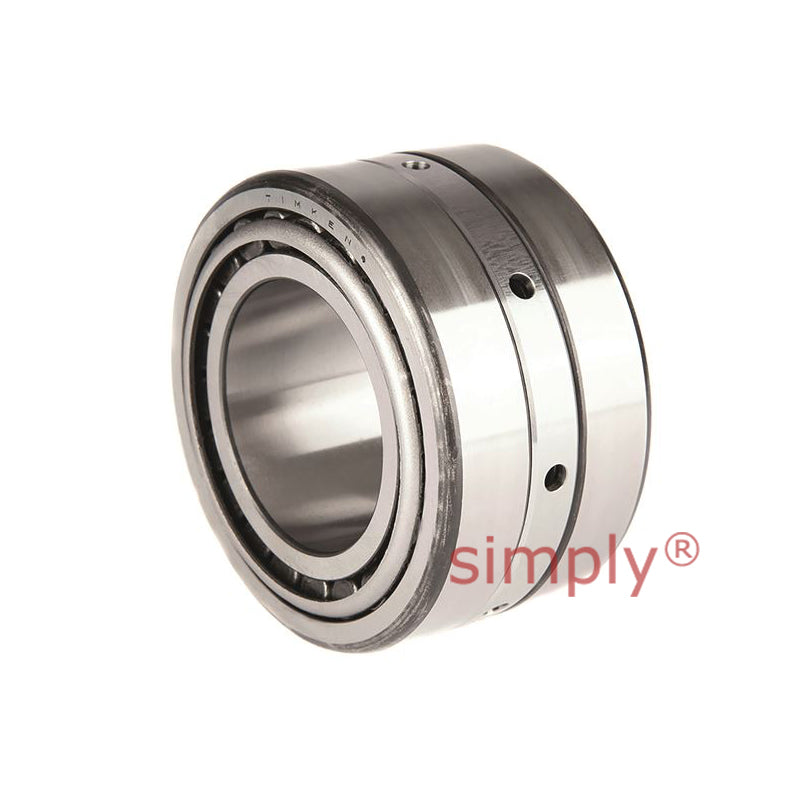

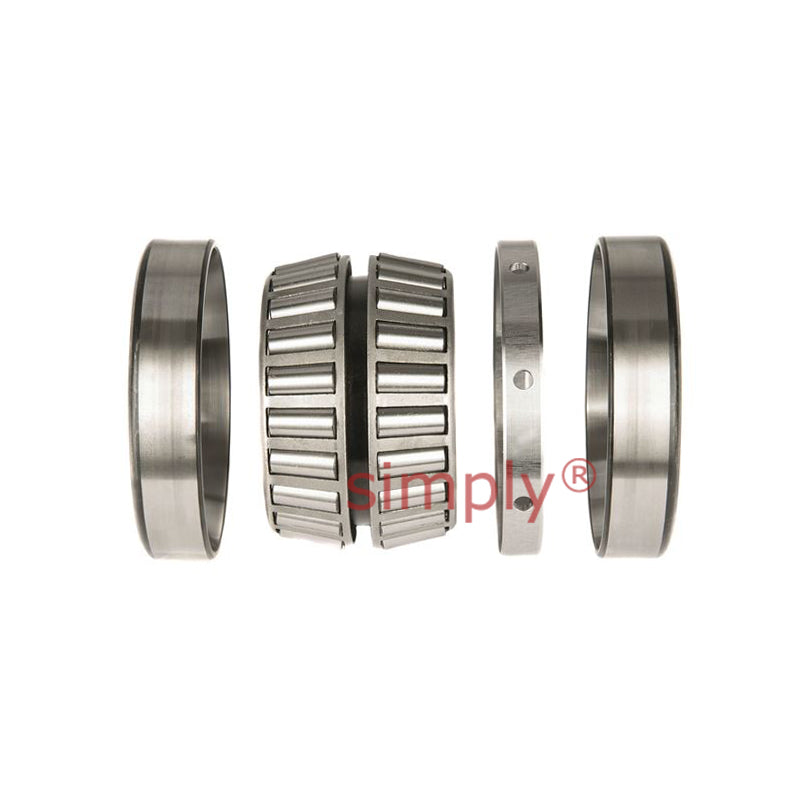

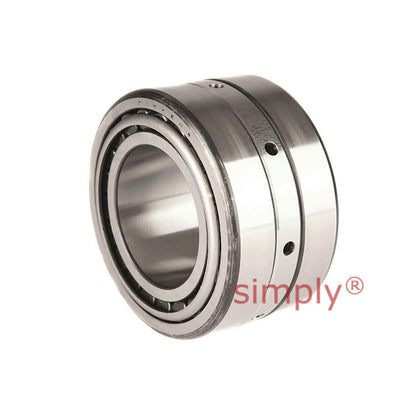

Timken 97500D/97900/Y3S-97900 TDI Double Inner Race Taper Roller Bearing 5x9x6.3125x5.9545 inch
Timken 97500D/97900/Y3S-97900 TDI Double Inner Race Taper Roller Bearing 5x9x6.3125x5.9545 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 127mm = 5 inch
- Outside Diameter:
- 228.6mm = 9 inch
- Width:
- 160.33mm = 6.312 (6-5/16) inch
Technical
Technical
| d | 127mm = 5 inch |
|---|---|
| D | 228.6mm = 9 inch |
| T | 160.338mm = 6.3125 inch |
| C | 151.244mm = 5.9545 inch |
| Dynamic (1) C1 | 606000N |
| Factors (5) e | 0.74 |
| Factors (5) Y1 | 0.92 |
| Factors (5) Y2 | 1.36 |
| Dynamic (2) C90 | 90200N |
| Dynamic (2) Ca90 | 114000N |
| Dynamic (2) C90(2) | 157000N |
| Factors (5) K | 0.79 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 144mm = 5.67 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 197mm = 7.76 inch |
| G1 | 237 |
| G2 | 44.6 |
| Cg | 0.1311 |
