SKU: 9575FF12

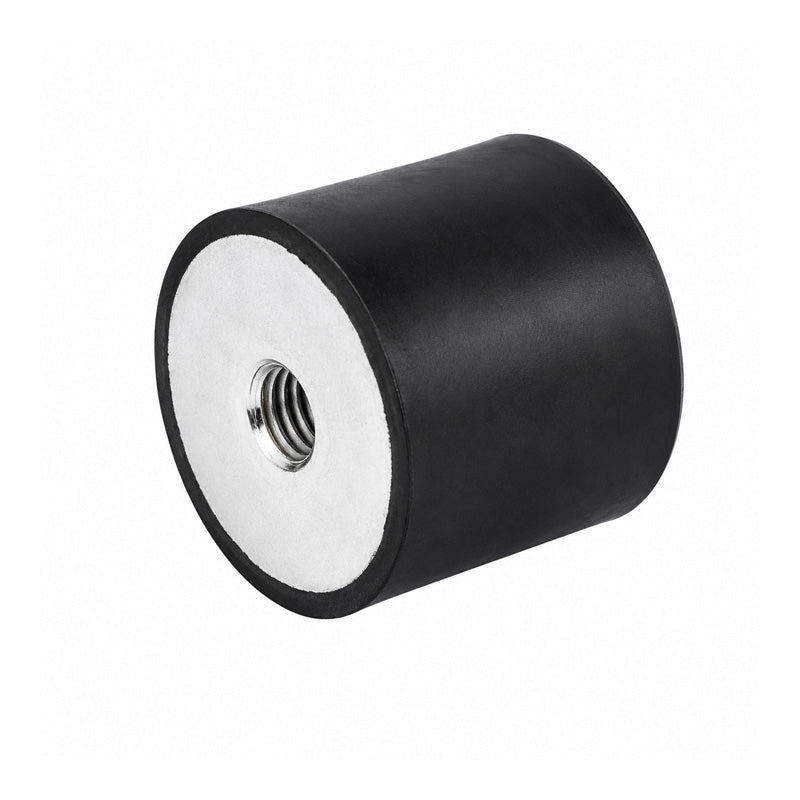

High-Performance Female/Female Anti-Vibration Bobbin 95x75mm M12 Threads
High-Performance Female/Female Anti-Vibration Bobbin 95x75mm M12 Threads
Out of stock
Share this product
Description
Description
Female to Female Bobbin Mounts: These female to female anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear or a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M12
- Outside Diameter:
- 95mm
- Length:
- 75mm
Technical
Technical
| Body Diameter D | 95mm |
|---|---|
| Body Height H | 75mm |
| Thread Diameter d | 12mm |
| Thread Depth L | mm |
| Deflection mm | 6.7mm |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+steel+nut">M12 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+set+screw">M12 Click Here</a> |
