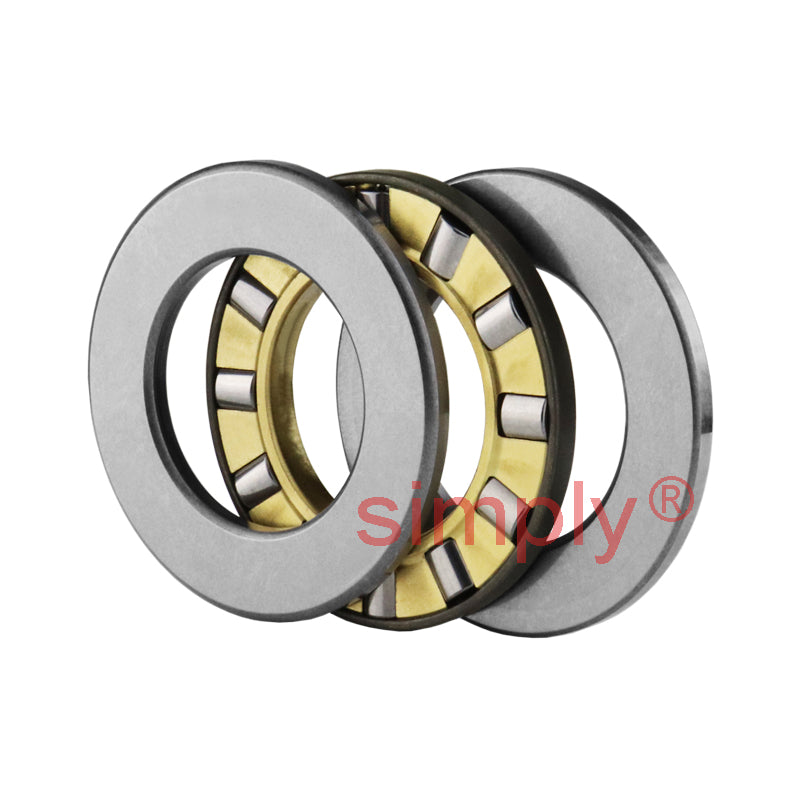

Major Brand 89188M Cylindrical Roller Thrust Bearing with Brass Cage 440x540x60mm
Major Brand 89188M Cylindrical Roller Thrust Bearing with Brass Cage 440x540x60mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 440mm
- Outside Diameter:
- 540mm
- Width:
- 60mm
Technical
Technical
| d | 440mm |
|---|---|
| D | 540mm |
| H | 60mm |
| Dynamic load C | 1040 kN |
| Static load Co | 6400 kN |
| Fatigue load limit Pu | 440 kN |
| Min load factor A | 3.3 |
| Reference speed | 320 rpm |
| Limiting speed | 630 rpm |
| Weight | 30 kg |
