SKU: 89172M.MB

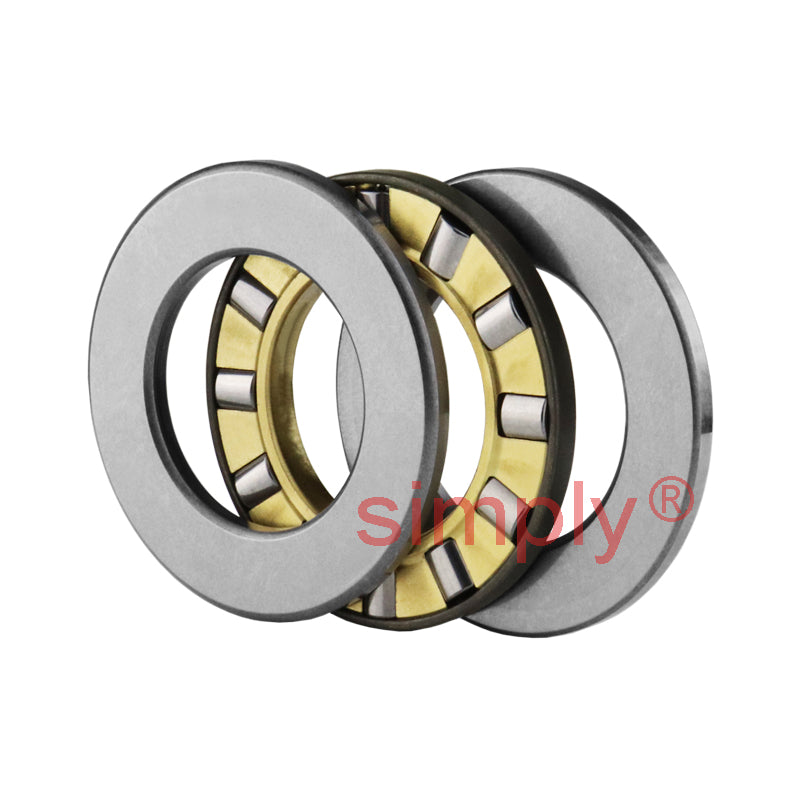

Major Brand 89172M Cylindrical Roller Thrust Bearing with Brass Cage 360x440x48mm
Major Brand 89172M Cylindrical Roller Thrust Bearing with Brass Cage 360x440x48mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 360mm
- Outside Diameter:
- 440mm
- Width:
- 48mm
Technical
Technical
| d | 360mm |
|---|---|
| D | 440mm |
| H | 48mm |
| Dynamic load C | 680 kN |
| Static load Co | 4150 kN |
| Fatigue load limit Pu | 290 kN |
| Min load factor A | 1.4 |
| Reference speed | 400 rpm |
| Limiting speed | 800 rpm |
| Weight | 15.5 kg |
