SKU: 812/800M.MB

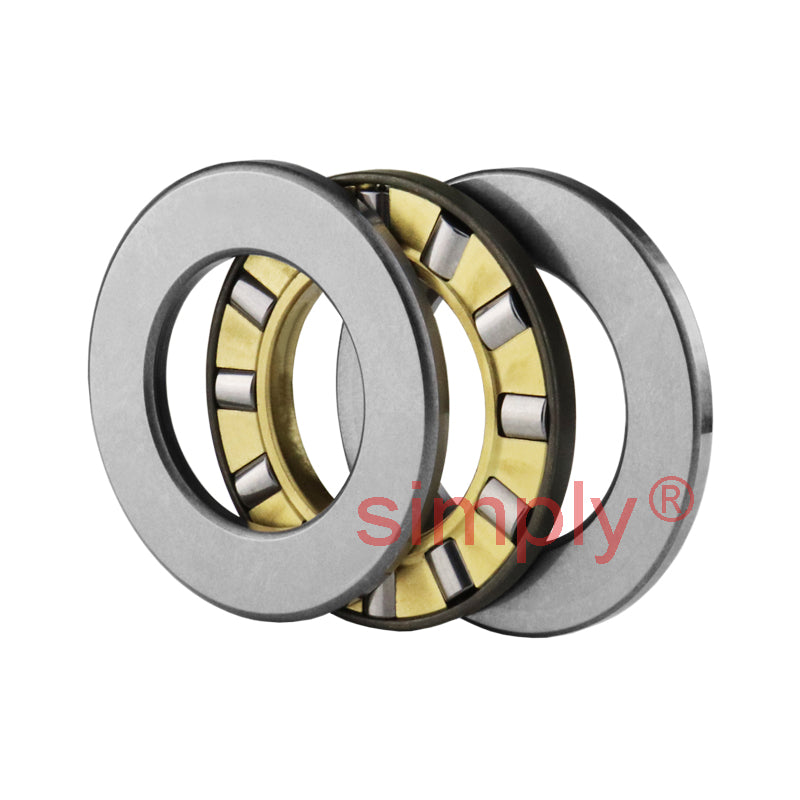

Major Brand 812/800M Cylindrical Roller Thrust Bearing with Brass Cage 800x1060x205mm
Major Brand 812/800M Cylindrical Roller Thrust Bearing with Brass Cage 800x1060x205mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 800mm
- Outside Diameter:
- 1060mm
- Width:
- 205mm
Technical
Technical
| d | 800mm |
|---|---|
| D | 1060mm |
| H | 205mm |
| Dynamic load C | 7350 kN |
| Static load Co | 40500 kN |
| Fatigue load limit Pu | 2280 kN |
| Min load factor A | 130 |
| Reference speed | 110 rpm |
| Limiting speed | 220 rpm |
| Weight | 515 kg |
