SKU: 812/670M.MB

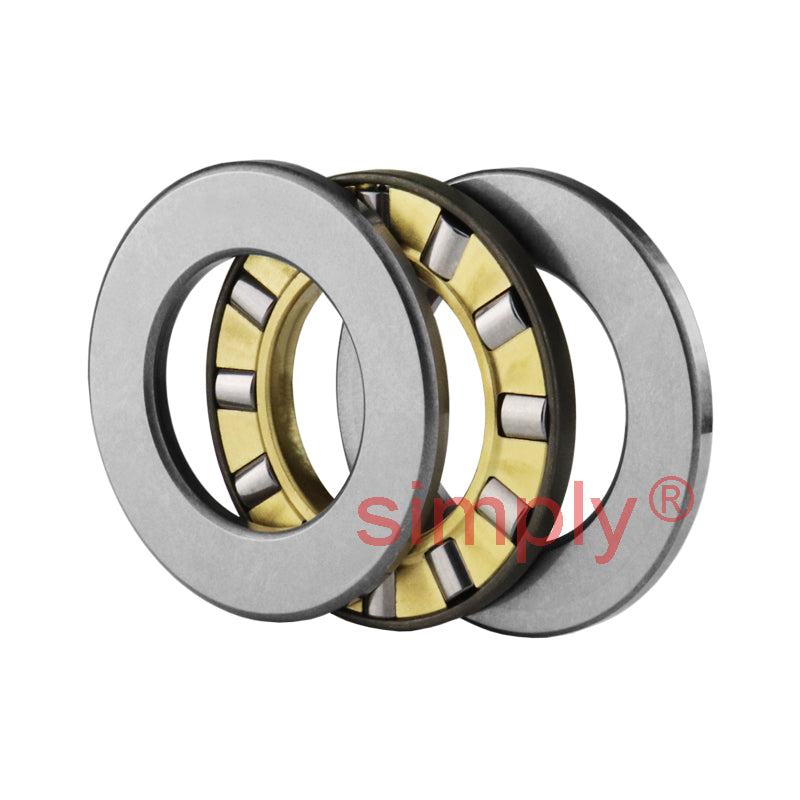

Major Brand 812/670M Cylindrical Roller Thrust Bearing with Brass Cage 670x900x180mm
Major Brand 812/670M Cylindrical Roller Thrust Bearing with Brass Cage 670x900x180mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 670mm
- Outside Diameter:
- 900mm
- Width:
- 180mm
Technical
Technical
| d | 670mm |
|---|---|
| D | 900mm |
| H | 180mm |
| Dynamic load C | 5700 kN |
| Static load Co | 30500 kN |
| Fatigue load limit Pu | 1800 kN |
| Min load factor A | 74 |
| Reference speed | 140 rpm |
| Limiting speed | 280 rpm |
| Weight | 335 kg |
