SKU: 80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $172.14 ex VAT
- Sale price
- $172.14
- Regular price
-
Not in stock
Quantity Price Breaks
2
$153.20
5
$144.60
10
$142.88
29
$141.15
49
$139.43
75
$137.71
100
$129.11
200
$127.38
250
$125.66
500
$123.94
1000
$120.50
SKU:
80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $172.14 ex VAT
- Sale price
- $172.14
- Regular price
-
Description

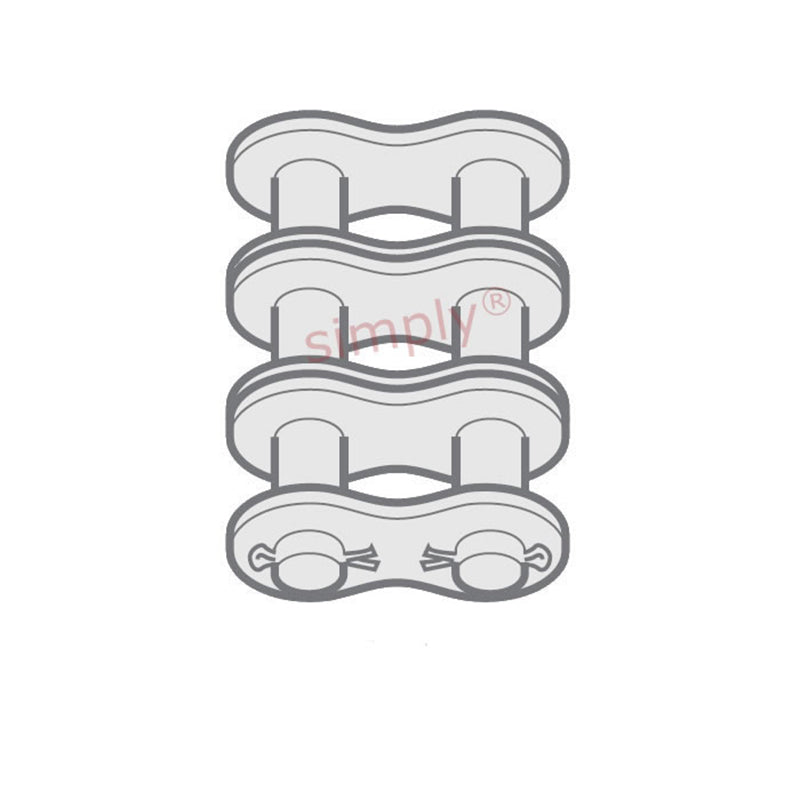

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.01kg/m |
