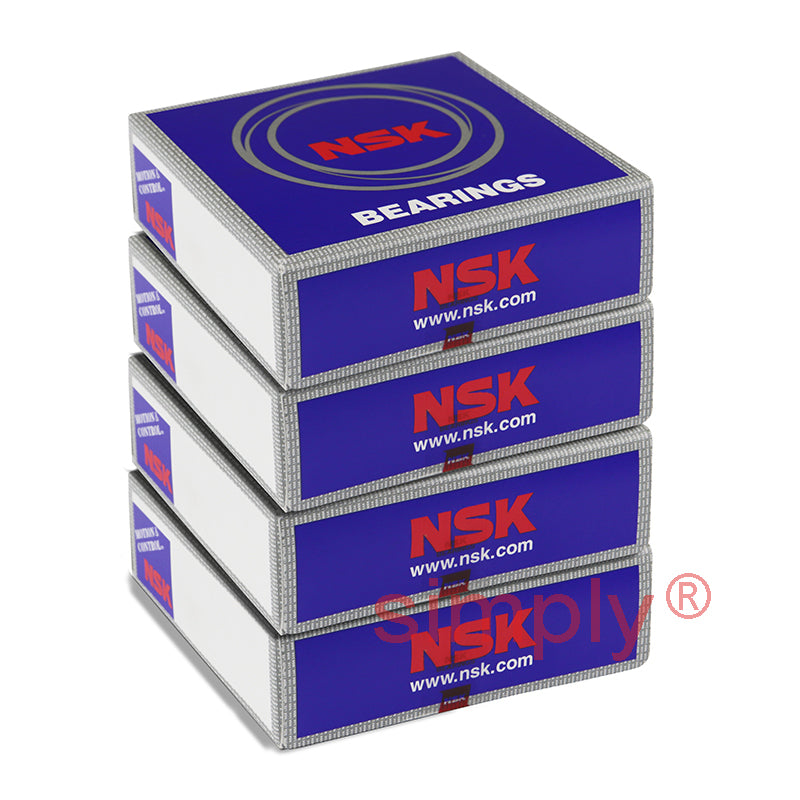

• NSK 7926A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)
1 1

SKU: 7926A5TRDBDLP3-NSK

NSK 7926A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)

NSK 7926A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 130x180x24mm (Set of 4)
$4,757.31 ex VAT
$4,757.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $2,211.68
5+ $2,087.43
10+ $2,062.58
25+ $2,037.73
49+ $2,012.88
74+ $1,988.03
99+ $1,863.78
199+ $1,838.93
249+ $1,814.08
499+ $1,789.23
999+ $1,739.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
130mm
Outside Diameter:
180mm
Width:
24mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 130mm
D 180mm
B 24mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 78Kn
C<sub>or</sub> 86kN
Axial load Kn 63.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 48.1mm
Max speed in grease 6500 rpm
Max speed in oil 9700 rpm
--- Fitting dimensions
d<sub>a min</sub> 139mm
D<sub>a max</sub> 171mm
D<sub>b max</sub> 174mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 6.16kg
