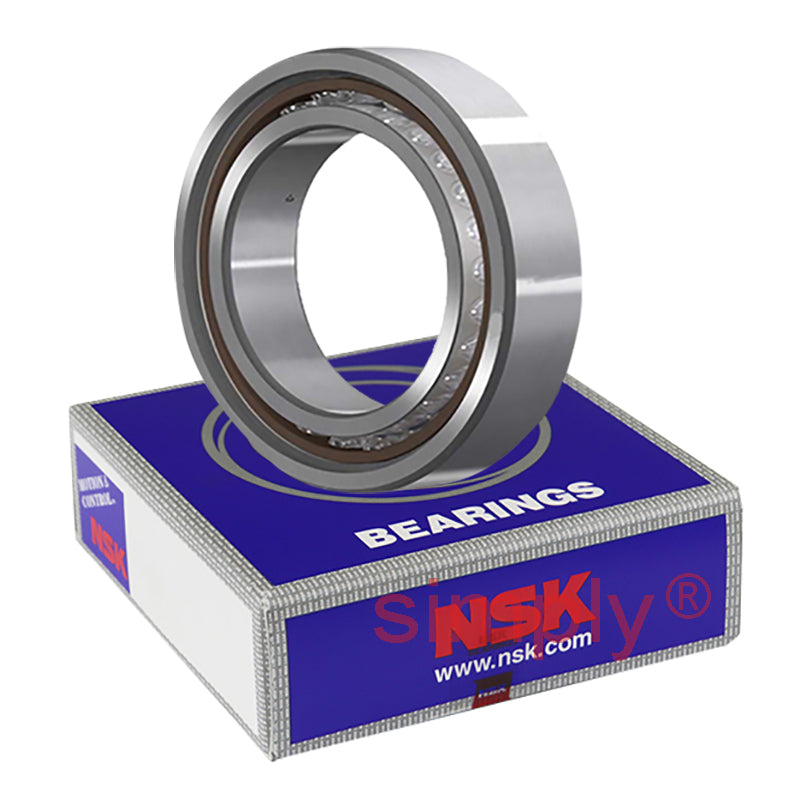

• NSK 7920A5TRV1VSULP4Y Super Precision Sealed Angular Contact Spindle Bearing 100x140x20mm
1 1

SKU: 7920A5TRV1VSULP4Y-NSK

NSK 7920A5TRV1VSULP4Y Super Precision Sealed Angular Contact Spindle Bearing 100x140x20mm

NSK 7920A5TRV1VSULP4Y Super Precision Sealed Angular Contact Spindle Bearing 100x140x20mm
$1,145.36 ex VAT
$1,145.36 ex VAT
Sale Sold out

In stock

Price Break
3+ $532.48
5+ $502.56
10+ $496.58
25+ $490.60
49+ $484.61
74+ $478.63
99+ $448.72
199+ $442.73
249+ $436.75
499+ $430.77
999+ $418.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
100mm
Outside Diameter:
140mm
Width:
20mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 100mm
D 140mm
B 20mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 49.5Kn
C<sub>or</sub> 51.5kN
Axial load Kn 39.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 38mm
Max speed in grease 8400 rpm
Max speed in oil 12500 rpm
--- Fitting dimensions
d<sub>a min</sub> 107mm
D<sub>a max</sub> 133mm
D<sub>b max</sub> 135mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.808kg
