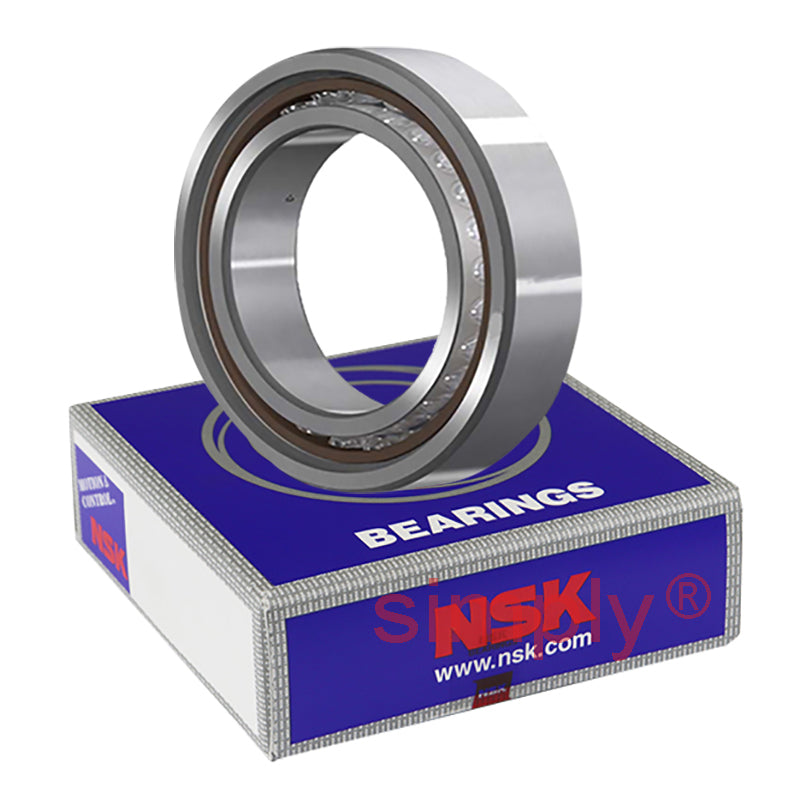

• NSK 7919CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm
1 1

SKU: 7919CTRV1VSULP3-NSK

NSK 7919CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm

NSK 7919CTRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm
$970.87 ex VAT
$970.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $451.36
5+ $426.01
10+ $420.93
25+ $415.86
49+ $410.79
74+ $405.72
99+ $380.36
199+ $375.29
249+ $370.22
499+ $365.15
999+ $355.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
95mm
Outside Diameter:
130mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 95mm
D 130mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 44.5Kn
C<sub>or</sub> 48kN
Axial load Kn 30 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.7
Effective diameter 24.1mm
Max speed in grease 10300 rpm
Max speed in oil 15600 rpm
--- Fitting dimensions
d<sub>a min</sub> 102mm
D<sub>a max</sub> 123mm
D<sub>b max</sub> 125mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.597kg
