• NSK 7919A5TRDULP3 Super Precision Angular Contact Spindle Bearing 95x130x18mm (Set of 2)
1 1

SKU: 7919A5TRDULP3-NSK

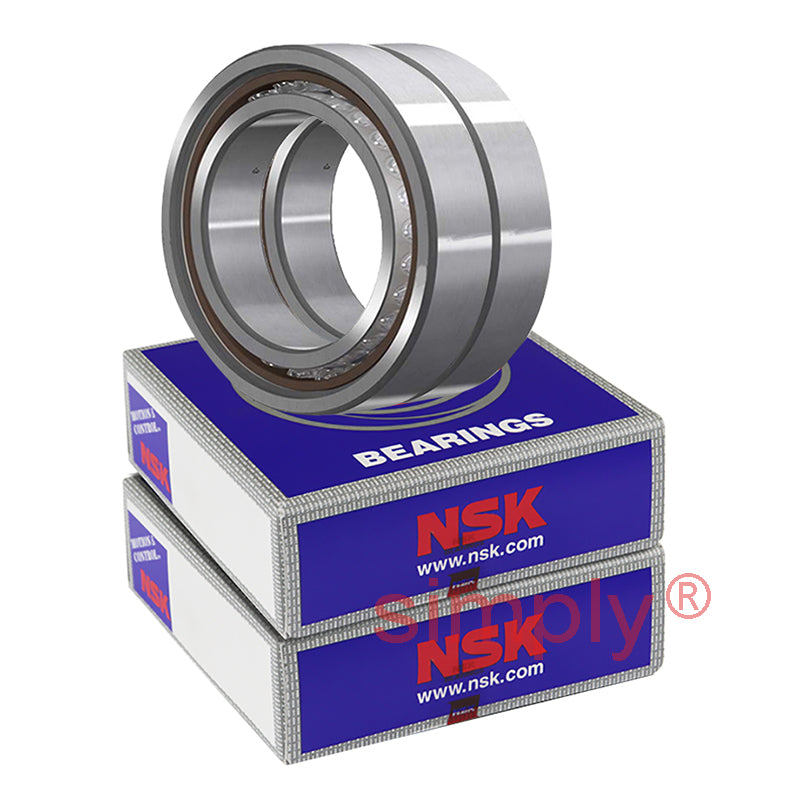

NSK 7919A5TRDULP3 Super Precision Angular Contact Spindle Bearing 95x130x18mm (Set of 2)

NSK 7919A5TRDULP3 Super Precision Angular Contact Spindle Bearing 95x130x18mm (Set of 2)
$1,494.31 ex VAT
$1,494.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $708.60
5+ $668.79
10+ $660.83
25+ $652.87
49+ $644.91
74+ $636.95
99+ $597.14
199+ $589.17
249+ $581.21
499+ $573.25
999+ $557.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
95mm
Outside Diameter:
130mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 95mm
D 130mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 42Kn
C<sub>or</sub> 45.5kN
Axial load Kn 35 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 35.2mm
Max speed in grease 8900 rpm
Max speed in oil 13400 rpm
--- Fitting dimensions
d<sub>a min</sub> 102mm
D<sub>a max</sub> 123mm
D<sub>b max</sub> 125mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.206kg
