SKU: 7918CTRDULP4-RHP

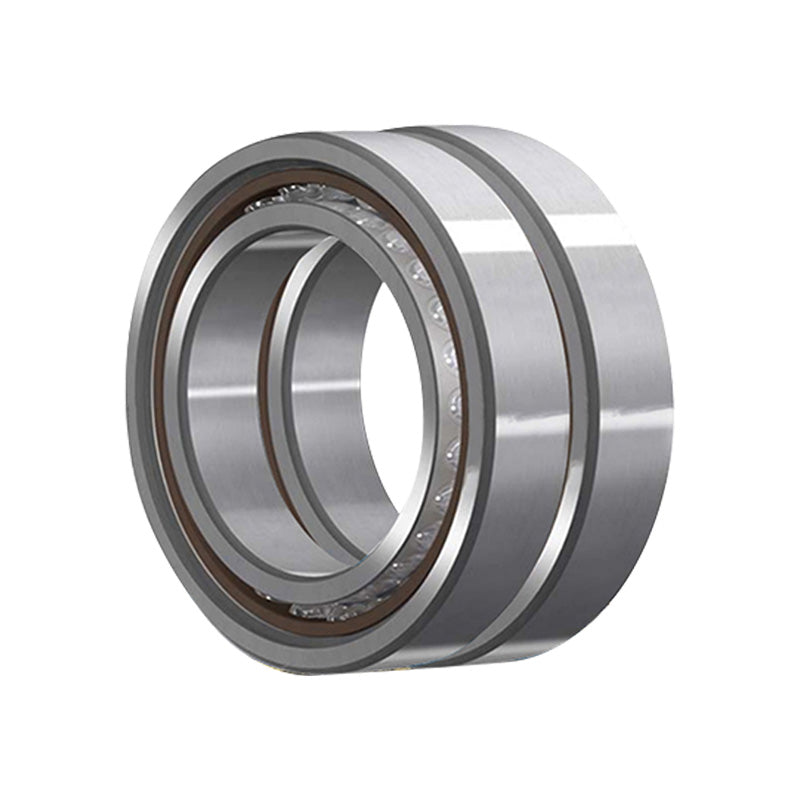

RHP 7918CTRDULP4 Super Precision Angular Contact Spindle Bearing 90x125x18mm (Set of 2)

RHP 7918CTRDULP4 Super Precision Angular Contact Spindle Bearing 90x125x18mm (Set of 2)
Regular price $1,342.34 ex VAT
Regular price Sale price $1,342.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $636.54
5+ $600.78
10+ $593.63
25+ $586.48
49+ $579.32
74+ $572.17
99+ $536.41
199+ $529.26
249+ $522.11
499+ $514.95
999+ $500.65
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 90mm
D 125mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 44Kn
C<sub>or</sub> 46kN
Axial load Kn 29.1 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.6
Effective diameter 23.4mm
Max speed in grease 10700 rpm
Max speed in oil 16300 rpm
--- Fitting dimensions
d<sub>a min</sub> 97mm
D<sub>a max</sub> 118mm
D<sub>b max</sub> 120mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.136kg
