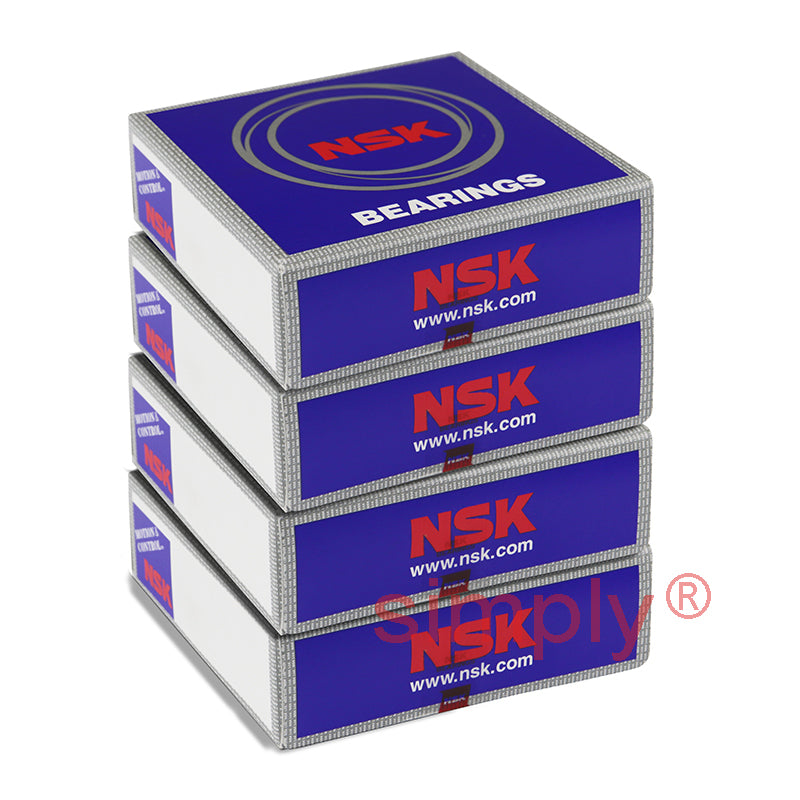

• NSK 7914A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 70x100x16mm (Set of 4)
1 1

SKU: 7914A5TRQUMP3-NSK

NSK 7914A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 70x100x16mm (Set of 4)

NSK 7914A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 70x100x16mm (Set of 4)
$1,947.38 ex VAT
$1,947.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $905.34
5+ $854.48
10+ $844.31
25+ $834.14
49+ $823.96
74+ $813.79
99+ $762.93
199+ $752.76
249+ $742.59
499+ $732.41
999+ $712.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
70mm
Outside Diameter:
100mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 70mm
D 100mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 27.9Kn
C<sub>or</sub> 26.3kN
Axial load Kn 20.3 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.8mm
Max speed in grease 11800 rpm
Max speed in oil 17700 rpm
--- Fitting dimensions
d<sub>a min</sub> 76mm
D<sub>a max</sub> 94mm
D<sub>b max</sub> 95mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 1.364kg
