SKU: 7910A5TRSULP3-RHP

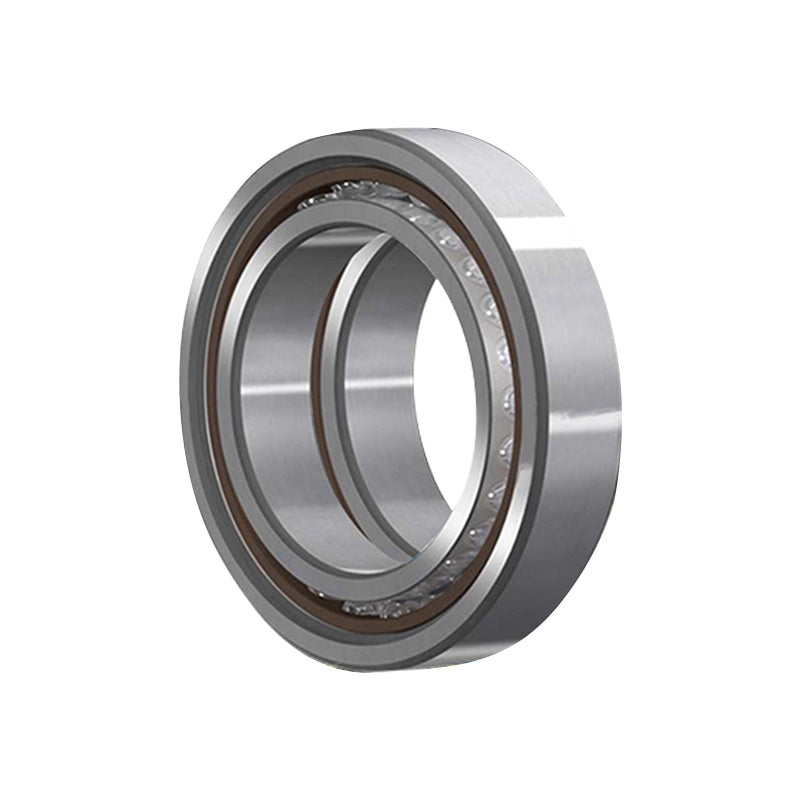

RHP 7910A5TRSULP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm

RHP 7910A5TRSULP3 Super Precision Angular Contact Spindle Bearing 50x72x12mm
Regular price $291.47 ex VAT
Regular price Sale price $291.47 ex VAT
Sale Sold out

In stock

Price Break
3+ $138.21
5+ $130.45
10+ $128.89
25+ $127.34
49+ $125.79
74+ $124.24
99+ $116.47
199+ $114.92
249+ $113.37
499+ $111.81
999+ $108.71
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 16.7Kn
C<sub>or</sub> 14.2kN
Axial load Kn 11 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 20.2mm
Max speed in grease 16400 rpm
Max speed in oil 24600 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.132kg
