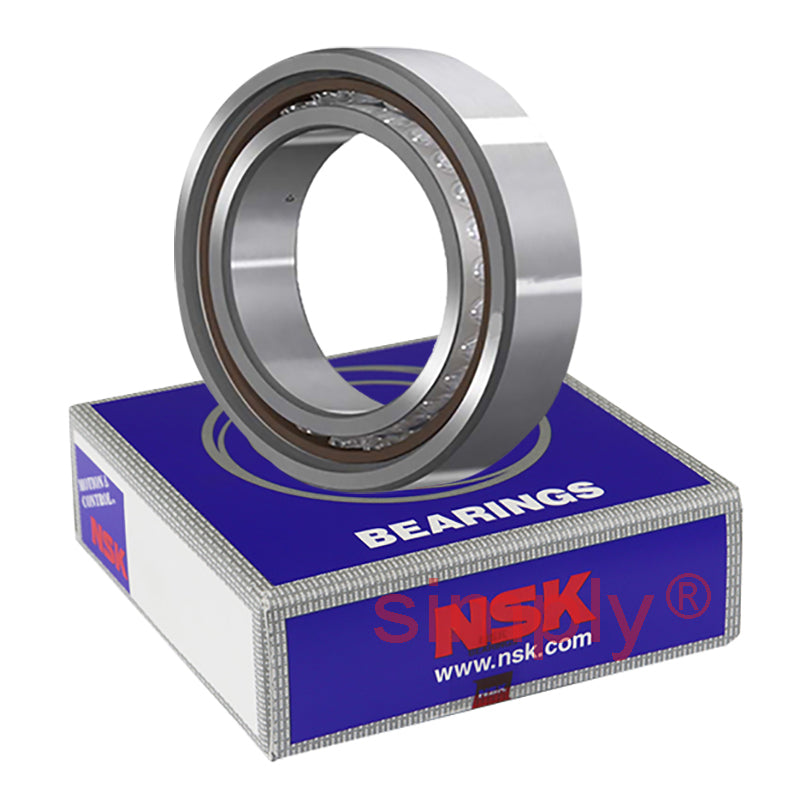

• NSK 7908CTRSULP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm
1 1

SKU: 7908CTRSULP3-NSK

NSK 7908CTRSULP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm

NSK 7908CTRSULP3 Super Precision Angular Contact Spindle Bearing 40x62x12mm
$271.37 ex VAT
$271.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $126.16
5+ $119.07
10+ $117.65
25+ $116.24
49+ $114.82
74+ $113.40
99+ $106.31
199+ $104.90
249+ $103.48
499+ $102.06
999+ $99.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15.9Kn
C<sub>or</sub> 11.7kN
Axial load Kn 8.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 12.8mm
Max speed in grease 22600 rpm
Max speed in oil 34400 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.109kg
