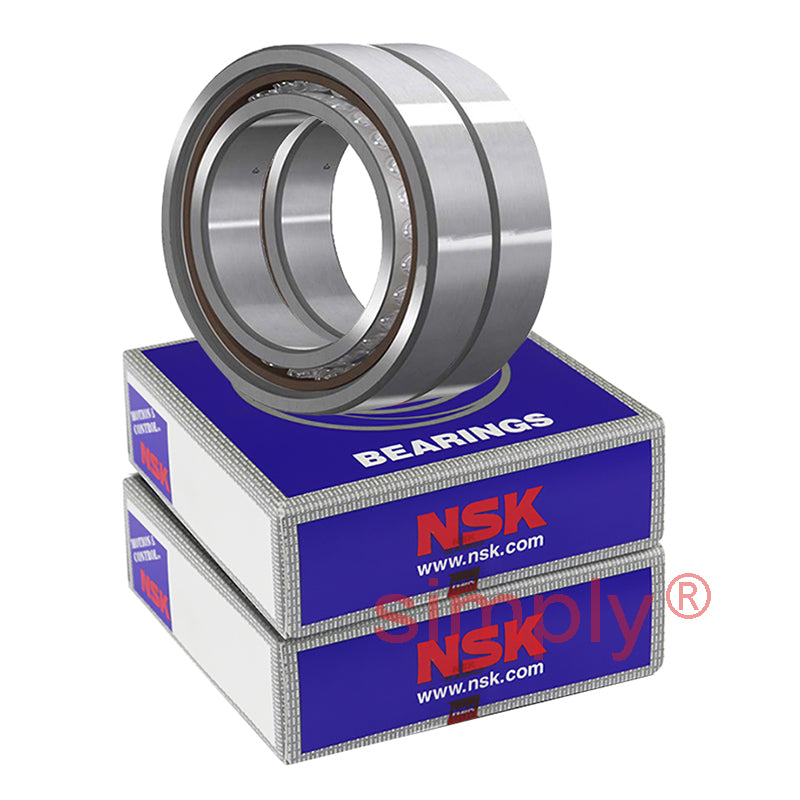

• NSK 7907A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)
1 1

SKU: 7907A5TRDUMP3-NSK

NSK 7907A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)

NSK 7907A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)
$460.52 ex VAT
$460.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $218.38
5+ $206.11
10+ $203.65
25+ $201.20
49+ $198.75
74+ $196.29
99+ $184.02
199+ $181.57
249+ $179.12
499+ $176.66
999+ $171.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12Kn
C<sub>or</sub> 8.7kN
Axial load Kn 7.2 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 15.5mm
Max speed in grease 22300 rpm
Max speed in oil 33400 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.15kg
