SKU: 77.6MXL-019-97-TRANSFLEX

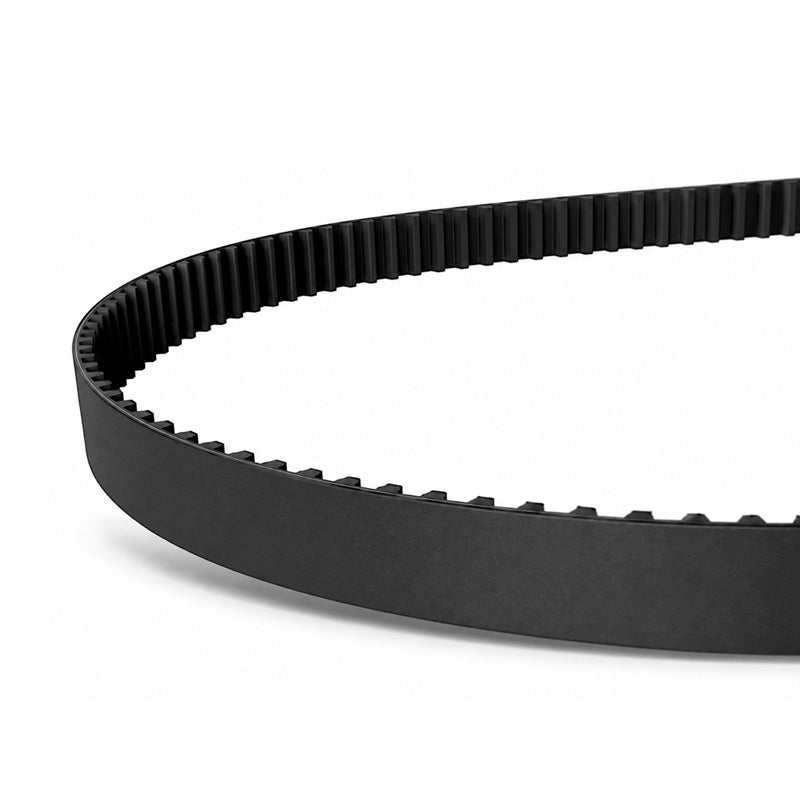

776MXL019 Transflex Synchronous Toothed Belt 0.19 inch Wide 7.76 inch Length 97 Teeth
776MXL019 Transflex Synchronous Toothed Belt 0.19 inch Wide 7.76 inch Length 97 Teeth
Regular price
$4.92
ex VAT
Regular price
Sale price
$4.92
ex VAT
In stock
Price Break
3+
$1.83
5+
$1.57
10+
$1.44
15+
$1.31
20+
$1.05
30+
$0.92
40+
$0.79
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 4.74mm = 3/16 inch
- Belt Depth Approx:
- 1.14mm
- Belt Length Approx:
- 197.1mm = 7.76 inch
- Number of Teeth:
- 97
Technical
Technical
| Belt width | 0.19 inch = 4.74mm |
|---|---|
| Pitch length | 7.76 inch = 197.1mm |
| Number of teeth | 97 |
| Tooth pitch t | 0.08 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.02 inch |
| Pitch zone u | 0.01 inch |
