SKU: 7303BEP-SKF

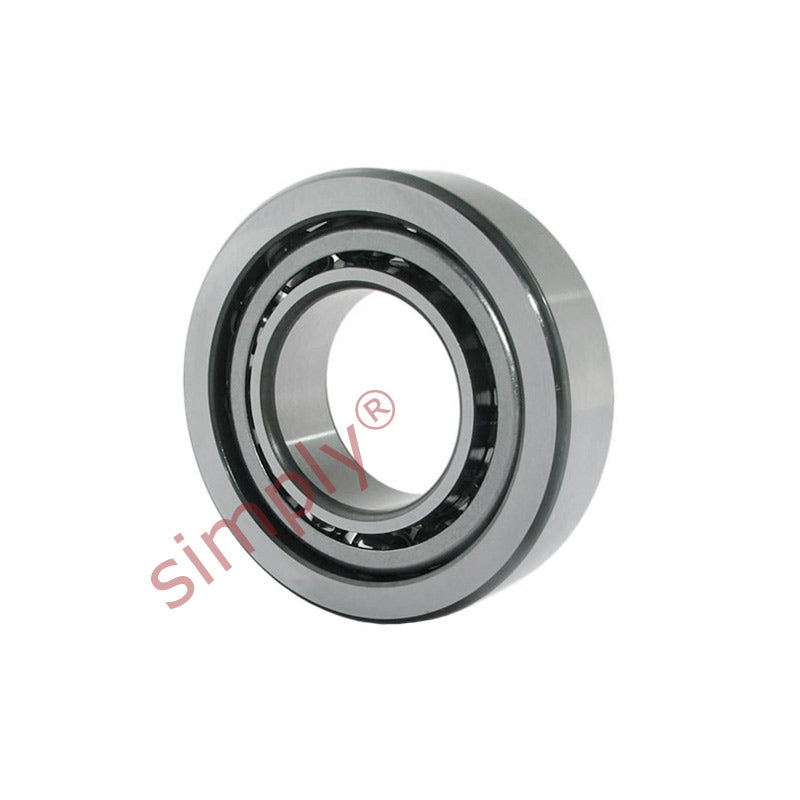

SKF 7303BEP Single Row Angular Contact Ball Bearing 17x47x14mm
SKF 7303BEP Single Row Angular Contact Ball Bearing 17x47x14mm
Regular price
$41.69
ex VAT
Regular price
Sale price
$41.69
ex VAT
Equivalent to: 7303BEP
In stock
Price Break
4+
$19.80
8+
$18.68
12+
$18.46
16+
$18.24
25+
$18.02
50+
$17.79
99+
$16.68
199+
$16.46
249+
$16.24
499+
$16.01
999+
$15.57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load Cr | 15.9 kN |
| Static load Cor | 8.3 kN |
| Fatigue load limit Pu | 0.355 kN |
| Reference speed | 19000 rpm |
| Limit speed | 19000 rpm |
| Weight | 0.11 kg |
| d1 | 28.7mm |
| d2 | 22.8mm |
| D1 | 36.2mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| a | 20.4mm |
| da min | 22.6mm |
| Da max | 41.4mm |
| Db max | 42.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
