SKU: 719USSC45-UKF

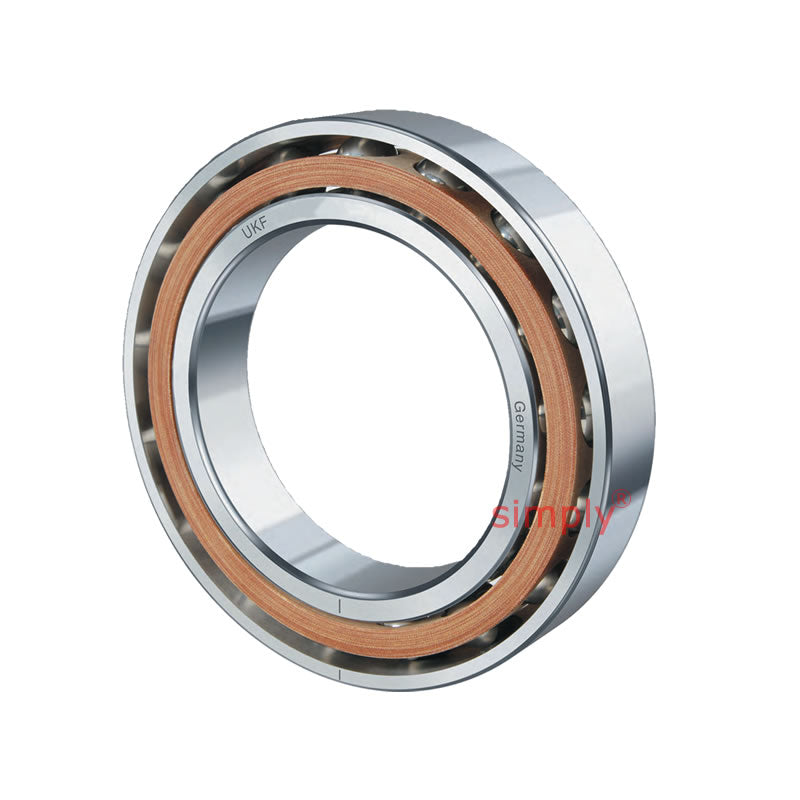

UKF 719USSC45 Super Precision Single Row Angular Contact Spindle Bearing 45x68x12mm
UKF 719USSC45 Super Precision Single Row Angular Contact Spindle Bearing 45x68x12mm
Equivalent to: 719USSC45
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 12mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 45mm |
|---|---|
| D | 68mm |
| B | 12mm |
| Dynamic load Co | 7040 N |
| Static load C | 9520 N |
| Speed in Grease | 23100 rpm |
| Speed in Oil | 35000 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 49.5mm |
| D<sub>a</sub> | 63.5mm |
| Axial Preload F<sub>v</sub> L | 130 N |
| Axial Preload F<sub>v</sub> M | 380 N |
| Axial Preload F<sub>v</sub> S | 760 N |
| Axial Rigidity R<sub>a</sub> L | 91 N/μm |
| Axial Rigidity R<sub>a</sub> M | 132 N/μm |
| Axial Rigidity R<sub>a</sub> S | 161 N/μm |
| Radial Rigidity R<sub>r</sub> L | 368 N/μm |
| Radial Rigidity R <sub>r</sub> M | 523 N/μm |
| Radial Rigidity <sub>r</sub> S | 656 N/μm |
| Weight | 0.11 kg |
